PVDF Tuff Guard Isolator - Modified PTFE Diaphragm
PVDF Tuff Guard Isolator - Modified PTFE Diaphragm
SKU:GAU-b0bbd9
Protect pressure instruments with PVDF Tuff Guard Isolator. Compliant with FDA, USDA, USP standards. Durable Modified PTFE Diaphragm.
Regular price
$167.50
Regular price
Sale price
$167.50
Unit price
per
Initiate Order
PVDF Tuff Guard Isolator - Modified PTFE Diaphragm
$167.50
Quantity: 1
Claim Your Seller Account
PVDF Tuff Guard Isolator - Modified PTFE Diaphragm
$167.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

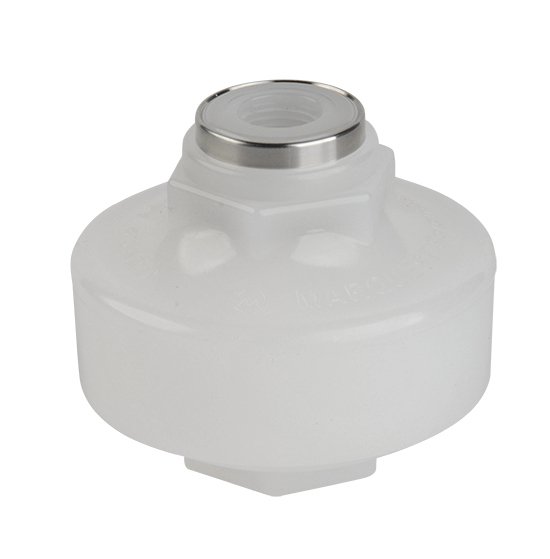

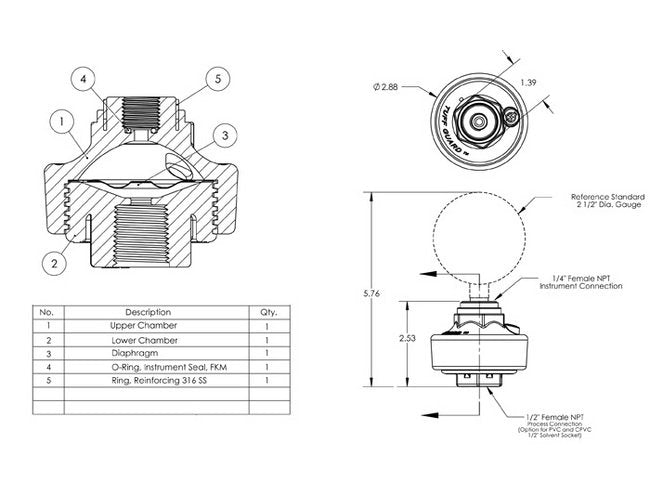

The PVDF Tuff Guard Isolator features a 1/4" Vent Fem NPT Instrument x 1/2" Fem NPT Inlet Process connection with a durable Modified PTFE Diaphragm. Designed as a Gauge Guard, it protects and isolates pressure-sensing instruments effectively. Compliant with FDA, USDA, and USP standards, this isolator ensures accurate pressure transmission with its convoluted diaphragm and stainless steel reinforced instrument connection. The reinforced process connection with compressive spoke ribs and integral wrench provisions for field service make it a reliable choice for institutional and government procurement needs.
Product Specifications
Specifications Instrument X Process Conn
1/4" Vent x 1/2" Female NPT
Specifications List Price
167.5 USD
Specifications Materials
PVDF, PTFE Diaphragm
Specifications Max Psi
250 PSI
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
