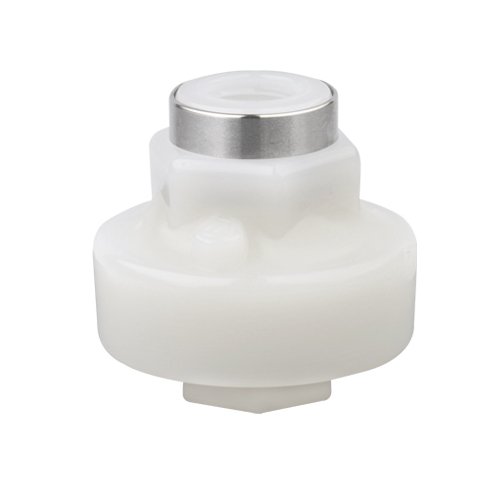

PVDF Tuff Guard Isolator - Modified PTFE Diaphragm
PVDF Tuff Guard Isolator - Modified PTFE Diaphragm
SKU:GAU-f34869
Protect your instruments with PVDF Tuff Guard Isolator featuring Modified PTFE Diaphragm. FDA, USDA, USP compliant. Replaceable diaphragm, low dead volume design for efficiency.
Regular price
$176.50
Regular price
Sale price
$176.50
Unit price
per
Initiate Order
PVDF Tuff Guard Isolator - Modified PTFE Diaphragm
$176.50
Quantity: 1
Claim Your Seller Account
PVDF Tuff Guard Isolator - Modified PTFE Diaphragm
$176.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

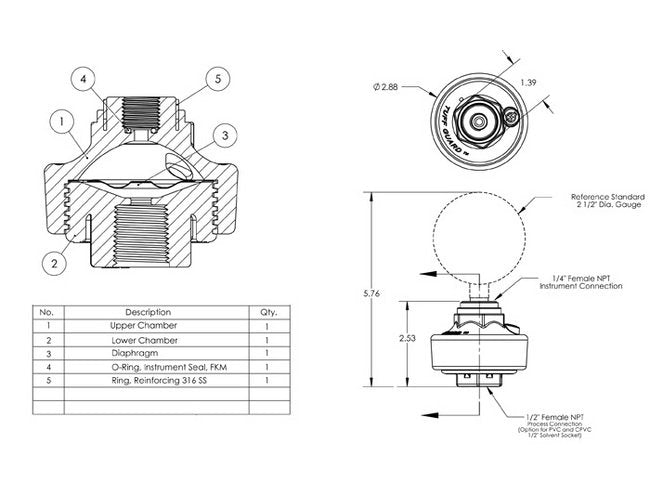

The PVDF Tuff Guard Isolator with a Modified PTFE Diaphragm is a robust solution for protecting and isolating pressure sensing instruments. Crafted from FDA, USDA, and USP compliant PVDF material, this isolator ensures accurate pressure transmission with its convoluted diaphragm design. The reinforced instrument and process connections guarantee durability and reliability, meeting ANSI Schedule 120 standards. With a self-venting internal shape for easy filling, replaceable diaphragm, and low profile design reducing dead volume, this isolator is designed for efficiency and longevity in institutional settings.
Product Specifications
Specifications Instrument X Process Conn
1/2" Vent x 1/2" Female NPT
Specifications List Price
176.50 USD
Specifications Materials
PVDF, PTFE Diaphragm
Specifications Max Psi
300 psi
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
