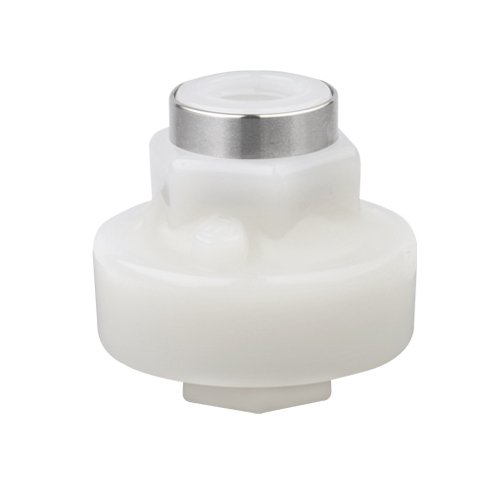

PVDF Tuff Guard Isolator with Viton Diaphragm
PVDF Tuff Guard Isolator with Viton Diaphragm
SKU:GAU-9e6c9a
Reliable PVDF Tuff Guard Isolator with Viton Diaphragm for precise pressure sensing and protection of instruments.
Regular price
$176.50
Regular price
Sale price
$176.50
Unit price
per
Initiate Order
PVDF Tuff Guard Isolator with Viton Diaphragm
$176.50
Quantity: 1
Claim Your Seller Account
PVDF Tuff Guard Isolator with Viton Diaphragm
$176.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

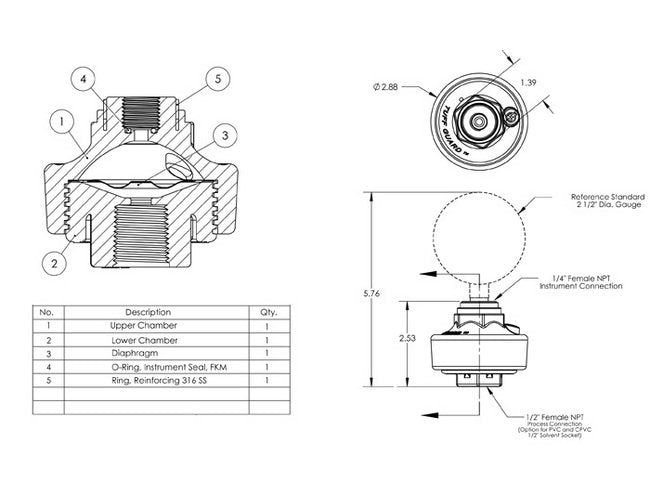

The PVDF Tuff Guard Isolator with Viton Diaphragm is a reliable gauge isolator designed to protect and isolate pressure-sensing instruments. Made from FDA, USDA, and USP compliant PVDF material with a convoluted Viton diaphragm, this isolator ensures accurate pressure transmission with a lower spring rate. It features a 1/2" Vent x 1/2" Female NPT instrument to process connection, stainless steel reinforced instrument connection, and reinforced process connection with compressive spoke ribs. The integral wrench provisions and self-venting internal shape make it easy to fill and maintain. With a low-profile design and 3-year product warranty, this isolator is a durable and efficient solution for your pressure sensing needs.
Product Specifications
Specifications Instrument X Process Conn
1/2" Vent x 1/2" Female NPT
Specifications List Price
176.50 USD
Specifications Materials
PVDF, Viton Diaphragm
Specifications Max Psi
300 psi
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
