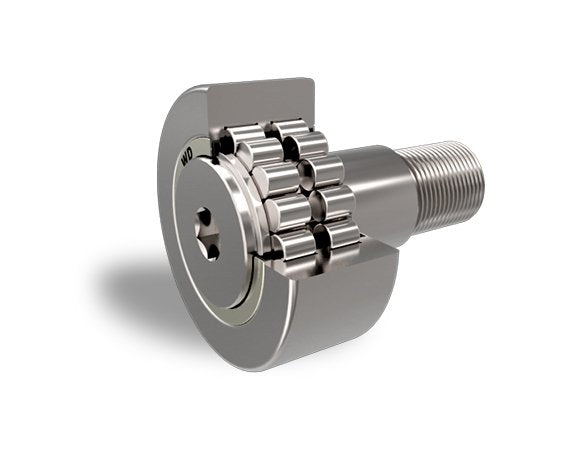

PWKR Series Cam Followers
PWKR Series Cam Followers
SKU:CAM-f78c13
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
PWKR Series Cam Followers
$49.99
Quantity: 1
Claim Your Seller Account
PWKR Series Cam Followers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

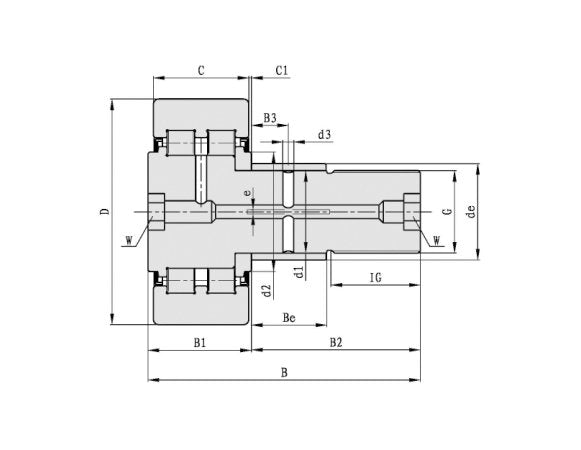

Product Specifications
Basic Load Rating Dynamic Cr Basic Load Rating
62000 kN
Basic Load Rating Static Cor Basic Load Rating
90000 kN
Inner Ring Dimension D2
47 mm
Inner Ring Overall Bearing Width
100 mm
Outer Ring Dimension C
35 mm
Outer Ring Outside Diameter
90 mm
Specifications Dimension B2
63 mm
Specifications Dimension B3
15 mm
Specifications Dimension Be
29 mm
Specifications Dimension C1
1 mm
Specifications Dimension D3
4 mm
Specifications Dimension De
35 mm
Specifications Dimension E
1.5 mm
Specifications Dimension G
M30X1.5 mm
Specifications Dimension Ig
32 mm
Specifications Dimension W
14 mm
Specifications Limiting Speed
1800 rpm
Specifications Mass
2020 g
Specifications Maximum Dimension B1
37 mm
Specifications Outside Diameter
30 mm
Specifications Type
With Eccentric Collar
