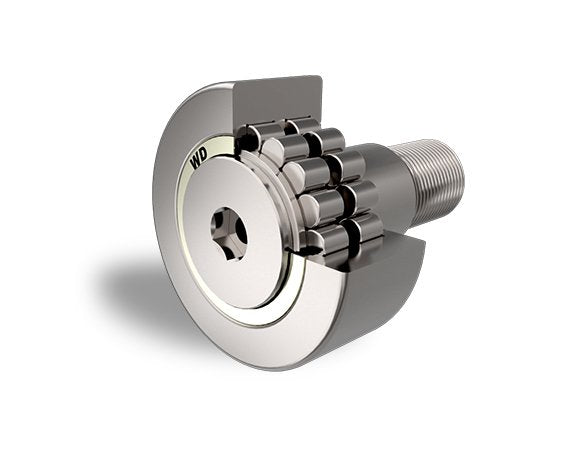

PWKR Series Cam Followers
PWKR Series Cam Followers
SKU:CAM-84c77d
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
PWKR Series Cam Followers
$49.99
Quantity: 1
Claim Your Seller Account
PWKR Series Cam Followers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

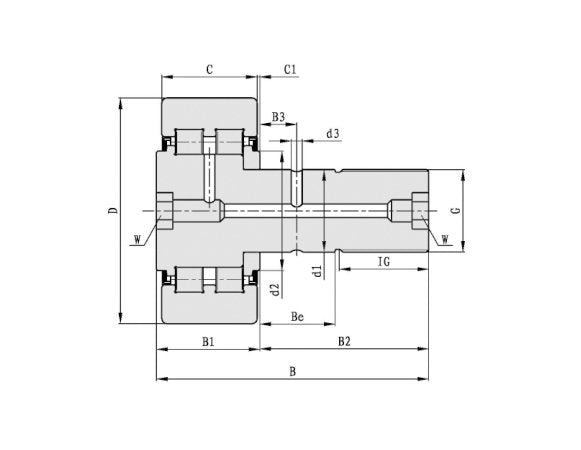

Product Specifications
Basic Load Rating Dynamic Cr Basic Load Rating
23800 kN
Basic Load Rating Static Cor Basic Load Rating
30500 kN
Inner Ring Dimension D2
27 mm
Inner Ring Overall Bearing Width
66 mm
Outer Ring Dimension C
24 mm
Outer Ring Outside Diameter
47 mm
Specifications Dimension B2
40.5 mm
Specifications Dimension B3
9 mm
Specifications Dimension Be
18 mm
Specifications Dimension C1
0.8 mm
Specifications Dimension D3
4 mm
Specifications Dimension De
24 mm
Specifications Dimension E
1 mm
Specifications Dimension G
M20X1.5 mm
Specifications Dimension Ig
21 mm
Specifications Dimension W
10 mm
Specifications Limiting Speed
3800 rpm
Specifications Mass
380 g
Specifications Maximum Dimension B1
25.6 mm
Specifications Outside Diameter
20 mm
Specifications Type
Without Eccentric Collar
