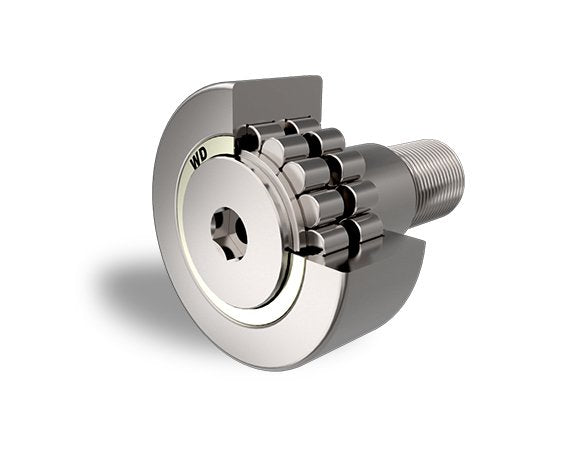

PWKR Series Cam Followers
PWKR Series Cam Followers
SKU:CAM-722cce
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
PWKR Series Cam Followers
$49.99
Quantity: 1
Claim Your Seller Account
PWKR Series Cam Followers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Ready to Grow Without Cash Flow Constraints?

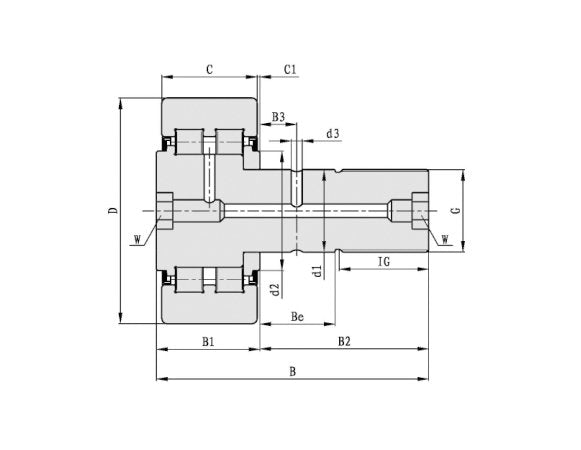

Product Specifications
Basic Load Rating Dynamic Cr Basic Load Rating
38000 kN
Basic Load Rating Static Cor Basic Load Rating
54000 kN
Inner Ring Dimension D2
47.8 mm
Inner Ring Dimension Di
41.3 mm
Inner Ring Overall Bearing Width
80 mm
Outer Ring Dimension C
28 mm
Outer Ring Dimension D2
49.7 mm
Outer Ring Dimension De
54.3 mm
Outer Ring Dimension Le
7 mm
Outer Ring Outside Diameter
72 mm
Roller Dimension I
2 mm
Roller Dimension Lw
10 mm
Roller Dimension Z
25 mm
Specifications Dimension B2
49.5 mm
Specifications Dimension B3
11 mm
Specifications Dimension Be
22 mm
Specifications Dimension C1
1.3 mm
Specifications Dimension D3
4 mm
Specifications Dimension De
28 mm
Specifications Dimension E
1 mm
Specifications Dimension G
M24X1.5 mm
Specifications Dimension Ig
25 mm
Specifications Dimension W
14 mm
Specifications Limiting Speed
2200 rpm
Specifications Mass
1020 g
Specifications Maximum Dimension B1
30.6 mm
Specifications Outside Diameter
24 mm
Specifications Type
Without Eccentric Collar
Thrust Ring Inner Diameter Id
24.15 mm
Thrust Ring Outer Diameter Od
47.8 mm
Thrust Ring Step
44 mm
Thrust Ring Width
6.25 mm
