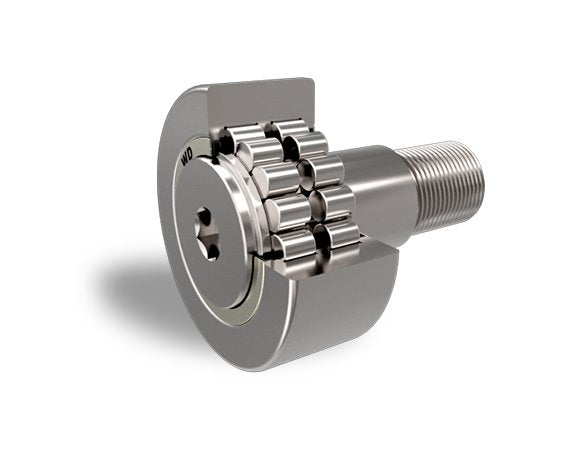

PWKR Series Cam Followers
PWKR Series Cam Followers
SKU:CAM-096c40
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
PWKR Series Cam Followers
$49.99
Quantity: 1
Claim Your Seller Account
PWKR Series Cam Followers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

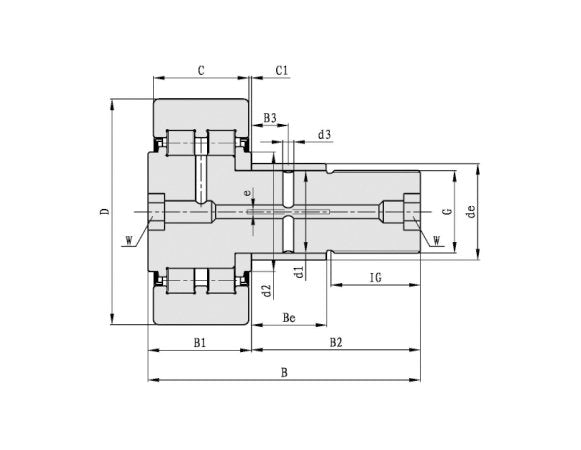

Product Specifications
Basic Load Rating Dynamic Cr Basic Load Rating
13600 kN
Basic Load Rating Static Cor Basic Load Rating
17200 kN
Inner Ring Dimension D2
24.7 mm
Inner Ring Dimension Di
21.65 mm
Inner Ring Overall Bearing Width
58 mm
Outer Ring Dimension C
20 mm
Outer Ring Dimension D2
26.7 mm
Outer Ring Dimension De
29.65 mm
Outer Ring Dimension Le
4 mm
Outer Ring Outside Diameter
40 mm
Roller Dimension I
2 mm
Roller Dimension Lw
18 mm
Roller Dimension Z
22 mm
Specifications Dimension B2
36.5 mm
Specifications Dimension B3
8 mm
Specifications Dimension Be
14 mm
Specifications Dimension C1
0.8 mm
Specifications Dimension D3
3 mm
Specifications Dimension De
22 mm
Specifications Dimension E
1 mm
Specifications Dimension G
M18X1.5 mm
Specifications Dimension Ig
19 mm
Specifications Dimension W
8 mm
Specifications Limiting Speed
5000 rpm
Specifications Mass
258 g
Specifications Maximum Dimension B1
21.6 mm
Specifications Outside Diameter
18 mm
Specifications Type
With Eccentric Collar
Thrust Ring Inner Diameter Id
18.15 mm
Thrust Ring Outer Diameter Od
24.7 mm
Thrust Ring Step
22 mm
Thrust Ring Width
4.75 mm
