PWKR Series Cam Followers
PWKR Series Cam Followers
SKU:CAM-14b573
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
PWKR Series Cam Followers
$49.99
Quantity: 1
Claim Your Seller Account
PWKR Series Cam Followers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

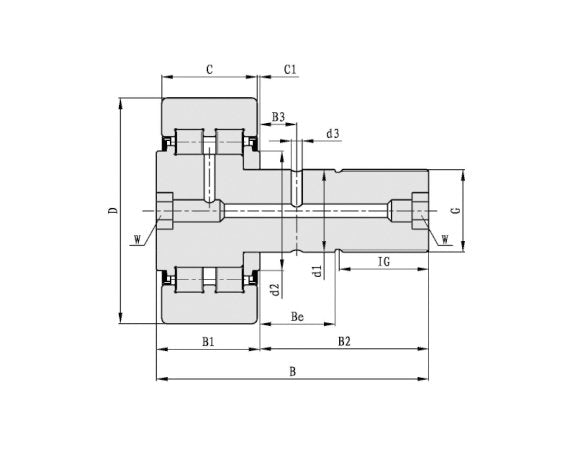

Product Specifications
Basic Load Rating Dynamic Cr Basic Load Rating
11900 kN
Basic Load Rating Static Cor Basic Load Rating
14600 kN
Inner Ring Dimension D2
22 mm
Inner Ring Dimension Di
19.15 mm
Inner Ring Overall Bearing Width
52 mm
Outer Ring Dimension C
18 mm
Outer Ring Dimension D2
24.5 mm
Outer Ring Dimension De
27.15 mm
Outer Ring Dimension Le
4 mm
Outer Ring Outside Diameter
35 mm
Roller Dimension Lw
8 mm
Roller Dimension Z
18 mm
Specifications Dimension B2
32.5 mm
Specifications Dimension B3
7.8 mm
Specifications Dimension Be
12 mm
Specifications Dimension C1
0.8 mm
Specifications Dimension D3
3 mm
Specifications Dimension De
20 mm
Specifications Dimension E
1 mm
Specifications Dimension G
M16X1.5 mm
Specifications Dimension Ig
17 mm
Specifications Dimension W
8 mm
Specifications Limiting Speed
6000 rpm
Specifications Mass
164 g
Specifications Maximum Dimension B1
19.6 mm
Specifications Outside Diameter
16 mm
Specifications Type
Without Eccentric Collar
Thrust Ring Inner Diameter Id
16.15 mm
Thrust Ring Outer Diameter Od
22 mm
Thrust Ring Step
20 mm
Thrust Ring Width
4.25 mm
