Pyrotex Knit Firesleeve, 1 7/8in, Aluminized Color
Pyrotex Knit Firesleeve, 1 7/8in, Aluminized Color
SKU:FIR-fd3ddb
High-quality Pyrotex Firesleeve, 1 7/8in size, aluminized color. Protects critical components in industrial applications with flame and heat resistance. Withstands up to 500°F continuously and 2200°F short-term.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Pyrotex Knit Firesleeve, 1 7/8in, Aluminized Color
$69.99
Quantity: 1
Claim Your Seller Account
Pyrotex Knit Firesleeve, 1 7/8in, Aluminized Color
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Pyrotex Knit Firesleeve in 1 7/8in size and aluminized color is a high-quality, flame and molten splash resistant sleeve designed to protect critical components in industrial applications. Made from texturized fiberglass and a self-extinguishing silicone polymer, it withstands temperatures up to 500°F continuously and 2200°F short-term. This sleeve provides thermal insulation, personnel protection, and extends the service life of assemblies, reducing energy costs and system damage.
Product Specifications
Accreditations Accreditations

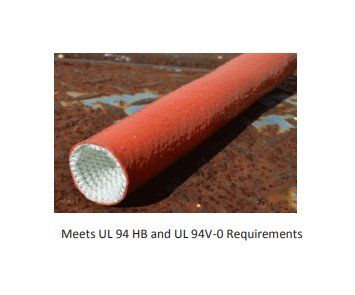

Meets UL 94 HB Requirements.Meets UL 94V-0 Requirements.Private brand printing services.REACh & RoHS compliant.Bulk lengths available to reduce scrap.Extensive stock for short lead times.
Additional Information Additional Information
Pyrotex Firesleeve withstands continuous exposure up to 500ºF and short-term exposure up to 2200ºF, is self-extinguishing and will not burn, or support combustion, and does not emit toxic smoke. This product displays excellent resistance to common industrial, automotive, and marine fluids, and provides lines with good protection against mechanical wear.
Availability Availability

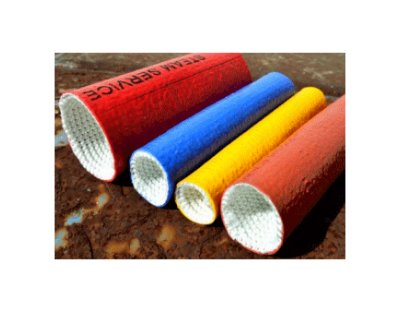

Pyrotex Knit is a stock product, allowing for a fast turnaround time.Bulk lengths available for scrap minimization.Firesleeve is supplied in 50 ft. coils and 100 ft. boxes standard.Available in diameters from 1/4" (6mm) to 4" (102mm).Available in standard RIO, other colors are available upon request.
Characteristics Characteristics
Self-extinguishing thick-walled insulating sleeve for excellent thermal protection.Sheds molten metal splash and resists direct flame impingement.Lightweight and highly flexible composite protective sleeve-,exceptional elasticity.Will not melt, burn, or support combustion- does not emit toxic smoke.Resistant to hydraulic fluids, fuels, lubricating oil, and water.Extends service life of assemblies and provides personnel protection.
Material Composition Material Composition
Highly texturized E-Glass fiber.Tightly knitted insulating substrate.High-temperature Silicone polymer.Various colored coatings available.
Specifications Color
Aluminized
Specifications Continuous Working Temperature
500 ºF | 260 ºC
Specifications Inside Diameter
1 7/8 in | 48 mm
Specifications Short Term Working Temperature
2200 ºF | 1200 ºC
Specifications Standard Length
100 ft. boxes | 50 ft. coils
