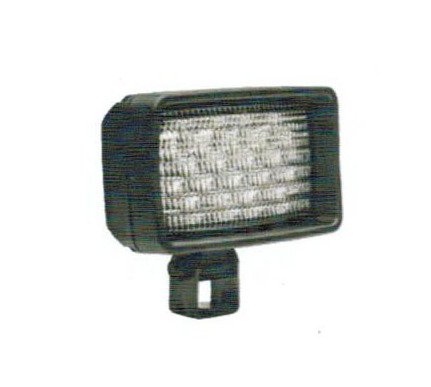

QL Series 15W LED Flood Light - ABL1100
QL Series 15W LED Flood Light - ABL1100
SKU:QLS-5460ef
High-performance 15W LED floodlight with 1200 lumens, durable design, and 4-year warranty. Ideal for demanding users.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
QL Series 15W LED Flood Light - ABL1100
$49.99
Quantity: 1
Claim Your Seller Account
QL Series 15W LED Flood Light - ABL1100
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The QL Series 15 Watt LED Flood Light, part of the ABL1100 family, is a high-performance lighting solution designed for demanding users. With 22 light-emitting diodes producing 1200 lumens, this floodlight offers optimal brightness and energy efficiency. It operates in a wide temperature range from -40 to +85 °C and is built to withstand vibration up to 15 g and shock up to 60 G. Featuring IP 68 to IP 69K water tightness and hardened glass lens material, this light is durable and suitable for various environments. The built-in thermal management system ensures safe operation even in challenging conditions. Backed by a 4-year warranty and meeting stringent industry standards, the QL Series 15W LED Flood Light is a reliable choice for both consumer and institutional buyers.
Product Specifications
Bulb Bulb Luminous Flux
1200 lumens
Bulb Number Of Light Emitting Diodes Led
22
Dimension Depth
3.8 mm
Dimension Height
6.1 mm
Dimension Length
3.7 mm
Note Note
Common Options available by request: various color lens - amber, red, blue - plastic lens - magnetic base - stainless hardware - AMP connectorAssembled in U.S
Specifications Color Temperature
6000 ºK
Specifications Connection
Built-in DT 2 Ways
Specifications Continuous Load Dump
36 V
Specifications Direct Current Dc Voltage
12 to 24 V
Specifications Electromagnetic Compatibility
International Organization for Standardization (ISO 12895) | International Organization for Standardization (ISO 13766) | International Organization for Standardization (ISO 14982)
Specifications Electronic Thermal Management
20% Dimmed at +50 Degrees Celsius (ºC) Ambient | Full Output at +35 Degree Celsius (ºC) Ambient
Specifications Flood
590-0081
Specifications Intensity At 24 Volts V
0.625 A
Specifications Lens Material
Hardened Glass

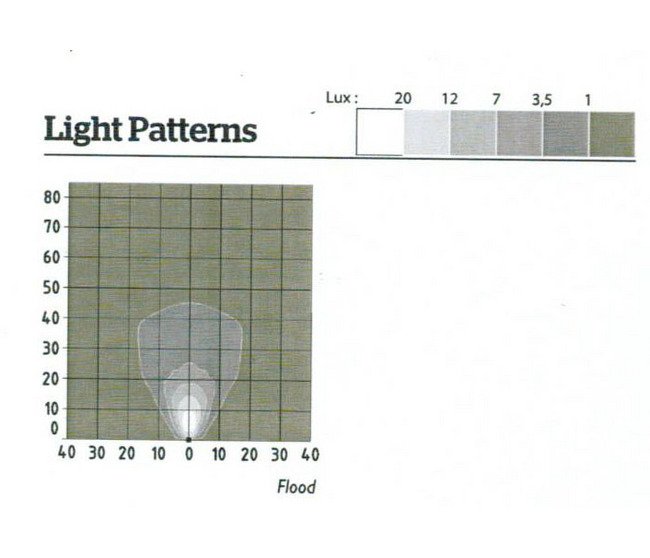

Specifications Light Pattern
Flood
Specifications Load Dump At 100 Milli Seconds Ms
58 V
Specifications Load Dump At 50 Micro Seconds S
1800 V

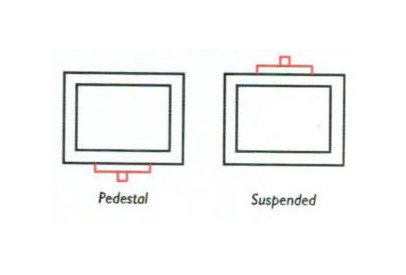

Specifications Mounting Type
Pedestal | Suspended
Specifications Multi Voltage
12 to 24 V
Specifications Operating Temperature Range
-40 to +85 ºC
Specifications Polarity
Protected Against Reversed Voltage
Specifications Power Consumption
15 W
Specifications Reflector
Free Form Reflector
Specifications Salt Spray Test
International Organization for Standardization (ISO 9227)
Specifications Shock Resistance
60 G
Specifications Vibration Resistance From 24 To 2000 Hertz Hz Rms
15 g
Specifications Warranty
4 years
Specifications Warranty Operating Hours
20,000 hours
Specifications Water Tightness
IP 68 to IP 69K
Specifications Weight
0.9 kg
