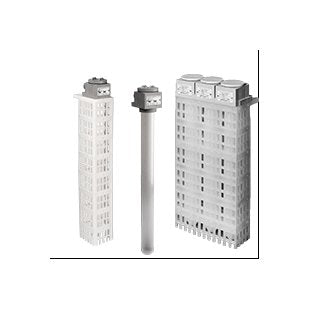

The Quartz Metal Element Immersion Heater from the QM Series by Process Technology is designed for superior chemical resistance, rugged construction, and outstanding performance. With watt densities up to 25 watts per square inch, this heater ensures long service life. It features a corrosion-resistant head, safety features like a grounded internal metal element, and thermal protector for solutions up to 180°F. Certified by cULus and CSA, available in various sizes and voltages, with optional thermal protectors and configurations for customization.
Product Specifications
Features And Benefits Features And Benefits

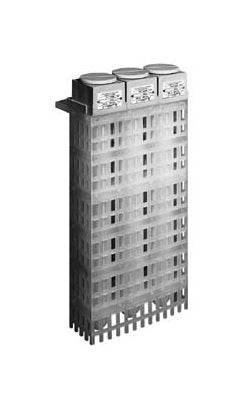

SUPERIOR CHEMICAL RESISTANCE: For use in most aqueous acidic plating solutions and pickling tanks. Check solution recommendation chart or with your chemical supplier for proper sheath material selection. RUGGED CONTRUCTION: Heavy wall quartz sheath with replaceable metal element and polypropylene guards (complete assembly). OUTSTANDING PERFORMANCE: Watt densities up to 25 watts per square inch (4 w/cm2) ensure long service life. CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit. SAFETY FEATURES: Grounded internal metal element. Thermal protector built in. Replaceable P1 protector standard for solutions up to 180ºF (82ºC). CERTIFICATIONS: cULus listed (less than 4000 watts), and 600 volt CSA only. SIZES:500 watts to 10,000 watts. VOLTAGES: 120 to 600 volts. OPTIONS AVAILABLE (consult factory):Replaceable thermal protectors: P4: for solutions up to 230°F(110°C). Resettable thermal protectors: P2: for solutions up to 180°F(82°C). P6: for solutions up to 230°F(110°C). Special configurations and lengths. Longer wire and conduit lengths. Three phase elements. Fluoropolymer(PTFE) guards for chromic acid or solutions over 180°F(82°C). Lower watt densities for highly viscous solutions. Temperature and level controls sized to match the heater (sold separately).
Note Note
NOTE: Not for use in hydrofluoric acid or alkaline solutions.
Options Available Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Replaceable thermal protector: P4: for solutions up to 230°F (110°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P6: for solutions up to 230°F (110°C).
Specifications Hot Zone
18 " | 457 mm
Specifications Manufacturer
Process Technology
Specifications Overall Length
23 " | 584 mm
Specifications Phase
Single (Standard) | Three
Specifications Quartz Tube Model
QM323J-**
Specifications Shipping Weight
14.0 Pound
Specifications Single Guard Model
QM23G
Specifications Volts
480 V
Specifications Watts
3000 W
Specifications Weight
14.0 lbs | 6.4 kg
