Quick Attach Metric Right Hand Stud
Quick Attach Metric Right Hand Stud
SKU:ARC-aac785
Enhance your cable railing systems with the Quick Attach Metric Right Hand Stud designed for architectural and marine applications.
Initiate Order
Quick Attach Metric Right Hand Stud
$17.99
Quantity: 1
Claim Your Seller Account
Quick Attach Metric Right Hand Stud
$17.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

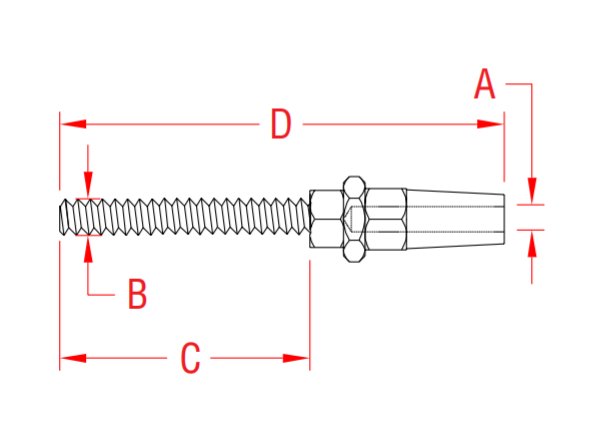

The Quick Attach Metric Right Hand Stud, part of our Quick Attach™ Stud product line, is specifically engineered for architectural cable railings and marine applications. With a focus on safety and reliability, these studs are designed for easy installation on wire ropes or aircraft cables. Offering a typical breaking strength of 90% of nominal cable strength when properly installed, these fittings ensure durability and performance for non-critical applications. It is recommended to apply a 5:1 safety factor when designing your assembly to ensure optimal functionality. The Metric Right Hand Stud features a Wire size of 4 mm, Thread size of 8 mm, and dimensions of 57 mm (C) and 102 mm (D), weighing only 0.15 lbs. Upgrade your cable railing systems with the precision and quality of our Quick Attach Metric Right Hand Stud.
