Quick Change European Style 2V-Die for Model 7321 Press Brake

Name: Quick Change European Style 2V-Die for Model 7321 Press Brake
Brand: Polyurethane Products Corp.
SKU: QUI-c2c701
Price: 599.99 USD
Availability: OutOfStock

SKU:QUI-c2c701

Enhance bending precision with the Model 7321 Quick Change European Style 2V-Die.

$599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade the efficiency of your bending operations with the Model 7321 Quick Change European Style Press Brake 2V-Die. Designed with precision, this tool features V-Openings of 0.315 in and 0.473 in, a 30° V-angle, and a durable construction capable of exerting 9 ton-force/ft or 30 ton-force/m. The 1.0 mm Radius on both ends ensures impeccable bends while maintaining a width of 2.303 in and a height of 50 mm. Perfect for industrial settings, this 2V-Die guarantees accuracy and quick setup changeovers, streamlining your workflow.

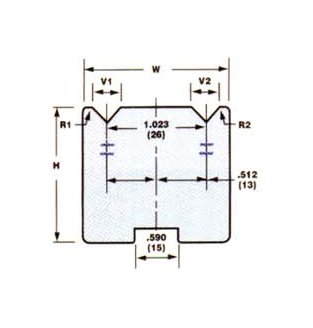

Product Specifications

Specifications Angle Of V

30 Âº

Specifications Height H

50 mm

Specifications Maximum Force Per Foot

9 ton-force/ft

Specifications Maximum Force Per Meter

30 ton-force/m

Specifications Radius R1

1.0 mm

Specifications Radius R2

1.0 mm

Specifications V Opening V1

0.315 in | 8 mm

Specifications V Opening V2

0.473 in | 12 mm

Specifications Width W

2.303 in | 58.5 mm

Quick Change European Style 2V-Die for Model 7321 Press Brake
