Quick Change European Style Press Brake 2V-Die - Model 7100

Name: Quick Change European Style Press Brake 2V-Die - Model 7100
Brand: Polyurethane Products Corp.
SKU: QUI-9d94c8
Price: 699.99 USD
Availability: OutOfStock

SKU:QUI-9d94c8

Experience precision bending with the Model 7100 Quick Change European Style Press Brake 2V-Die

$699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Model 7100 European Style Press Brake Quick Change 2V-Die is engineered for precision and efficiency. With V-Openings of 0.157 in and 0.276 in, and a sturdy build capable of handling up to 18 ton-force/ft, this die ensures precise bends with consistent quality. Its 90º Angle of V and compact design make it suitable for a wide range of bending applications. Compliance with Federal/DoD procurement standards and FAR requirements guarantees reliability and accuracy for institutional buyers.

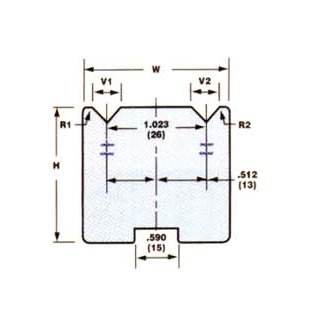

Product Specifications

Specifications Angle Of V

90 Âº

Specifications Height H

46 mm

Specifications Maximum Force Per Foot

18 ton-force/ft

Specifications Maximum Force Per Meter

60 ton-force/m

Specifications Radius R1

0.4 mm

Specifications Radius R2

0.4 mm

Specifications V Opening V1

0.157 in | 4 mm

Specifications V Opening V2

0.276 in | 7 mm

Specifications Width W

1.358 in | 34.5 mm

Quick Change European Style Press Brake 2V-Die - Model 7100
