Quick Change European Style Press Brake 2V-Die, Model 7104
Quick Change European Style Press Brake 2V-Die, Model 7104
SKU:QUI-2be832
Enhance bending precision with the Model 7104 Quick Change European Style Press Brake 2V-Die. Achieve accurate bends with ease!
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Quick Change European Style Press Brake 2V-Die, Model 7104
$249.99
Quantity: 1
Claim Your Seller Account
Quick Change European Style Press Brake 2V-Die, Model 7104
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

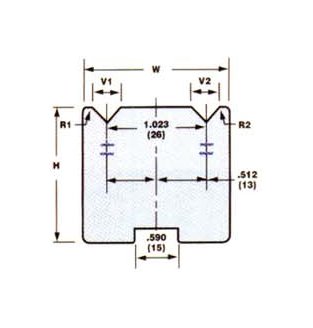

The Model 7104 European Style Press Brake Quick Change 2V-Die offers precision and efficiency in sheet metal bending. With V-Openings of 0.551in and 0.709in, it can handle up to 30 ton-force/ft or 100 ton-force/m. The 88° Angle of V ensures accurate bends, while the slim design with 1.772in width and 46mm height optimizes workflow. Equipped with a 0.5mm Radius on both ends, this die guarantees consistent results, meeting the highest industry standards for quality and performance.
Product Specifications
Specifications Angle Of V
88 º
Specifications Height H
46 mm
Specifications Maximum Force Per Foot
30 ton-force/ft
Specifications Maximum Force Per Meter
100 ton-force/m
Specifications Radius R1
0.5 mm
Specifications Radius R2
0.5 mm
Specifications V Opening V1
0.551 in | 14 mm
Specifications V Opening V2
0.709 in | 18 mm
Specifications Width W
1.772 in | 45 mm
