Quick Change European Style Press Brake 2V-Die, Model 7210

Name: Quick Change European Style Press Brake 2V-Die, Model 7210
Brand: Polyurethane Products Corp.
SKU: QUI-df308f
Price: 499.99 USD
Availability: OutOfStock

SKU:QUI-df308f

Model 7210 Quick Change European Style Press Brake 2V-Die - Precision bending with 24 ton-force capacity, ideal for government standards

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

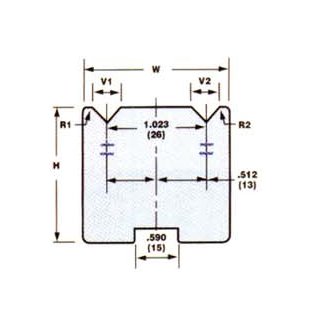

The Model 7210 Quick Change European Style Press Brake 2V-Die is engineered for precision bending tasks with V-Openings of 0.236 in and 0.294 in, ensuring accurate bends at a 90° angle. With a maximum force capacity of 24 ton-force/ft or 80 ton-force/m, this die delivers consistent results. Its compact design with a width of 1.575 in and a height of 46 mm provides versatility in various fabrication projects. The 1.5 mm and 2.5 mm radii enhance bend quality, meeting stringent government procurement standards for reliability and durability.

Product Specifications

Specifications Angle Of V

90 Âº

Specifications Height H

46 mm

Specifications Maximum Force Per Foot

24 ton-force/ft

Specifications Maximum Force Per Meter

80 ton-force/m

Specifications Radius R1

1.5 mm

Specifications Radius R2

2.5 mm

Specifications V Opening V1

0.236 in | 6 mm

Specifications V Opening V2

0.294 in | 10 mm

Specifications Width W

1.575 in | 40 mm
