Quick Change European Style Press Brake 2V-Die Set
Quick Change European Style Press Brake 2V-Die Set
SKU:QUI-b33128
Achieve precise bends with the Model 7101 European Style Press Brake 2V-Die Set. Optimal for metal shaping needs.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Quick Change European Style Press Brake 2V-Die Set
$2,899.99
Quantity: 1
Claim Your Seller Account
Quick Change European Style Press Brake 2V-Die Set
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

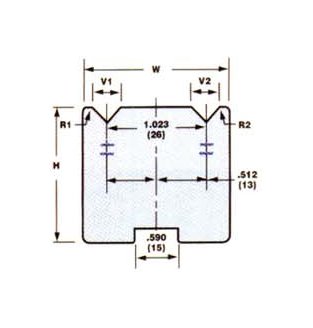

The Model 7101 Quick Change European Style Press Brake 2V-Die Set is crafted for precision bending applications, featuring V-Openings of 6mm and 10mm with a 90-degree angle for crisp bends. With a maximum force capacity of 21 ton-force/ft and 70 ton-force/m, this die set ensures efficient shaping of metal sheets. The set includes V-Dies with widths of 37mm, radii of 0.4mm and 0.6mm, and a height of 46mm, catering to diverse bending requirements. Designed for durability and ease of use, this die set is an essential tool for metalworking professionals.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Angle Of V
90 º
Specifications Height H
46 mm
Specifications Maximum Force Per Foot
21 ton-force/ft
Specifications Maximum Force Per Meter
70 ton-force/m
Specifications Radius R1
0.4 mm
Specifications Radius R2
0.6 mm
Specifications V Opening V1
0.236 in | 6 mm
Specifications V Opening V2
0.394 in | 10 mm
Specifications Width W
1.457 in | 37 mm
