Quick Change European Style Press Brake 2V-Die Set - Model 7102

Name: Quick Change European Style Press Brake 2V-Die Set - Model 7102
Brand: Polyurethane Products Corp.
SKU: QUI-c9d9ed
Price: 4250.99 USD
Availability: OutOfStock

SKU:QUI-c9d9ed

Achieve precision bends with Model 7102 European Style Press Brake Quick Change 2V-Die. V-Openings: 0.315 in & 0.472 in, 90° V angle, 24-80 ton-force capacities. Ideal for diverse bending needs.

$4,250.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

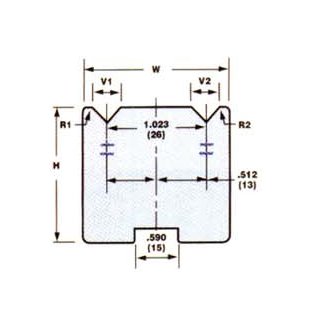

The Model 7102 European Style Press Brake Quick Change 2V-Die is a precision-engineered tool designed for seamless V-opening adjustments, featuring V1 at 0.315 in (8 mm) and V2 at 0.472 in (12 mm) with a precise 90-degree angle. With a maximum force per foot of 24 ton-force and per meter of 80 ton-force, this die set ensures accurate bending operations. Its compact design includes a width of 1.535 in (39 mm), radii of 0.5 mm and 0.8 mm, and a height of 46 mm, making it versatile for various press brake applications.

Product Specifications

Specifications Angle Of V

90 Âº

Specifications Height H

46 mm

Specifications Maximum Force Per Foot

24 ton-force/ft

Specifications Maximum Force Per Meter

80 ton-force/m

Specifications Radius R1

0.5 mm

Specifications Radius R2

0.8 mm

Specifications V Opening V1

0.315 in | 8 mm

Specifications V Opening V2

0.472 in | 12 mm

Specifications Width W

1.535 in | 39 mm

Quick Change European Style Press Brake 2V-Die Set - Model 7102
