Quick-Connect Chassis Mount Power Transformers
Quick-Connect Chassis Mount Power Transformers
SKU:POW-34bdbc
Meet rigorous U.S. and Int'l standards with Chassis Mount Quick-Connect Transformers. Dual bobbin design, UL-approved materials, Hi-pot tested for safety.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Quick-Connect Chassis Mount Power Transformers
$89.99
Quantity: 1
Claim Your Seller Account
Quick-Connect Chassis Mount Power Transformers
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

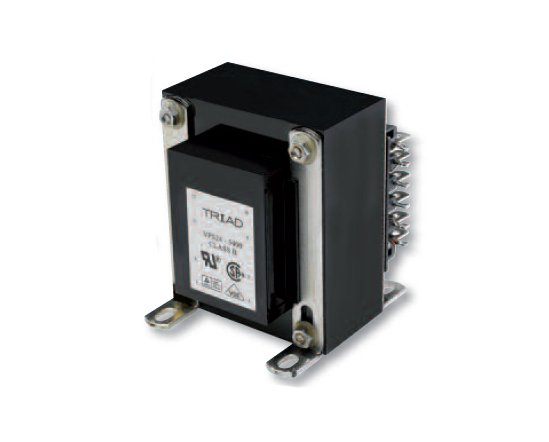

Enhance your power systems with the Chassis Mount Quick-Connect World Series™ Power Transformers. Designed to meet stringent U.S. and International standards like CSA, IEC, TUV, and UL, these transformers feature a dual bobbin design within an insulating shroud, constructed with UL approved high-temperature material. With primary and secondary electric isolation, quick-connect terminations, Hi-pot tested at 4,000 VRMS, and versatile primary and secondary coil configurations, these transformers offer reliability and compliance for a range of applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

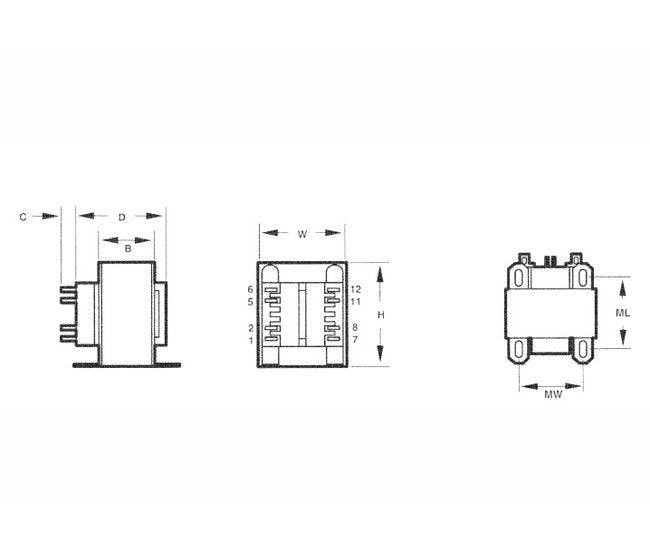

Specifications Depth D
2 11/16 in
Specifications Dimension B
1 5/8 in
Specifications Dimension C
3/8 in
Specifications Dimension T
1/4 in
Specifications Electrical Rating
130 V·A
Specifications Height H
3 3/8 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Length
2 1/2 in
Specifications Mounting Width
2 1/4 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
8.0 V at 16.2 A
Specifications Secondary Series
16.0 V CT at 8.1 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
4.10 lb
Specifications Width W
2 13/16 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
