Quick-Connect Chassis Mount Power Transformers
Quick-Connect Chassis Mount Power Transformers
SKU:POW-4b2949
Meet U.S. and International standards with our Quick-Connect Chassis Mount Power Transformers. Dual bobbin design, UL approved materials, and electrical isolation ensure efficient power conversion without the need for electrostatic shielding.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Quick-Connect Chassis Mount Power Transformers
$89.99
Quantity: 1
Claim Your Seller Account
Quick-Connect Chassis Mount Power Transformers
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

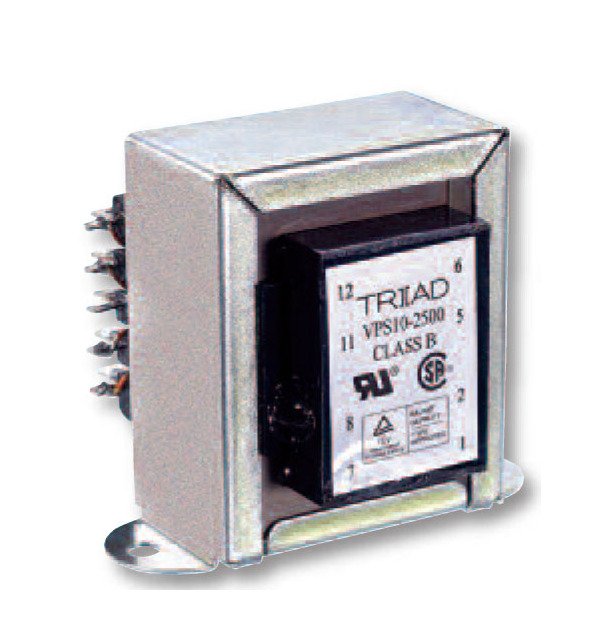

Experience top-notch performance with our Quick-Connect Chassis Mount Power Transformers from the World Series line. Designed to meet strict U.S. and International standards including CSA, IEC, TUV, and UL requirements, these transformers feature a dual bobbin design in an insulating shroud made of UL approved high-temperature material. With primary and secondary electrical isolation, quick-connect terminations, and a range of 25 VA to 175 VA, these transformers offer efficient power conversion without the need for electrostatic shielding. Ideal for institutional and government applications.
Product Specifications
Note 0
Class 2/3 UL File: E65390

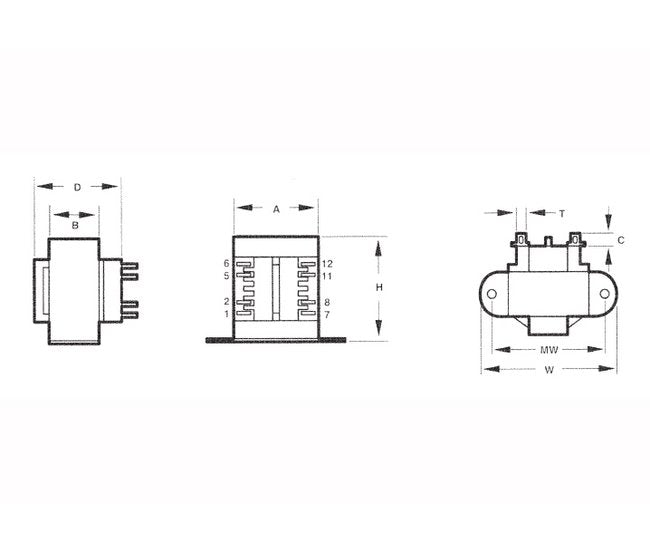

Specifications Depth D
1 15/16 in
Specifications Dimension A
2 in
Specifications Dimension B
1 1/8 in
Specifications Dimension C
5/16 in
Specifications Dimension T
3/16 in
Specifications Electrical Rating
25 V·A
Specifications Height H
2 5/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
18.0 V at 1.4 A
Specifications Secondary Series
36.0 V CT at 0.7 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.30 lb
Specifications Width W
2 13/16 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
