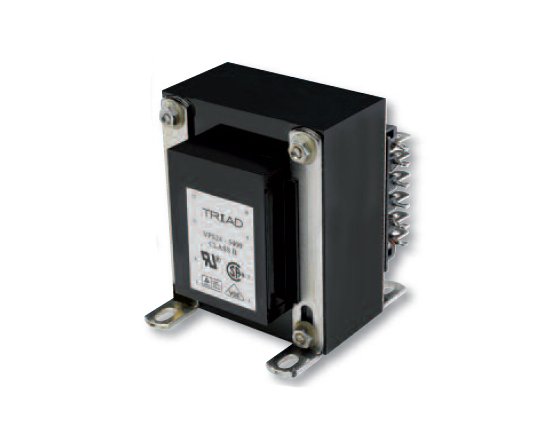

The Quick-Connect Chassis Mount Power Transformers from the World Series™ are a reliable and efficient power solution designed to meet a variety of U.S. and International standards including CSA, IEC, TUV, and UL requirements. Featuring a dual bobbin design enclosed in an insulating shroud with UL approved high temperature material, these transformers eliminate the need for electrostatic shielding due to minimal capacitance between coils. With both primary and secondary electrically isolated from each other and the core, they ensure safety and performance. Available in sizes ranging from 25 VA to 175 VA, these transformers come with convenient 'quick connect' terminations for easy installation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

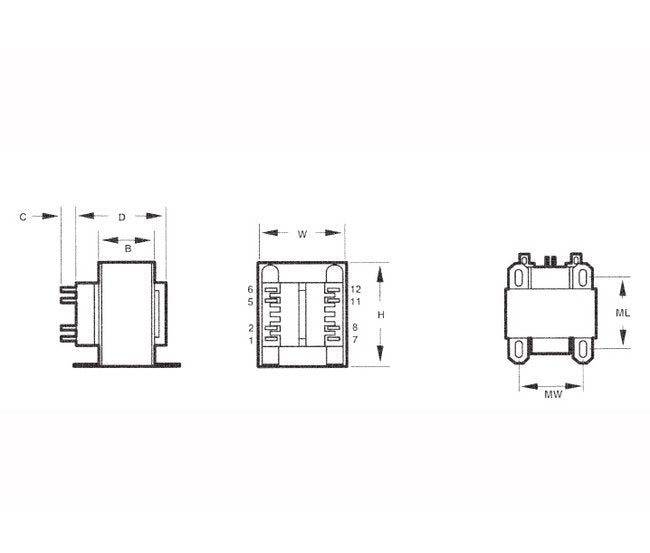

Specifications Depth D
2 11/16 in
Specifications Dimension B
1 5/8 in
Specifications Dimension C
3/8 in
Specifications Dimension T
1/4 in
Specifications Electrical Rating
130 V·A
Specifications Height H
3 3/8 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Length
2 1/2 in
Specifications Mounting Width
2 1/4 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
115.0 V at 1.14 A
Specifications Secondary Series
230.0 V CT at 0.57 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
4.10 lb
Specifications Width W
2 13/16 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
