Quick-Connect Chassis Mount Power Transformers
Quick-Connect Chassis Mount Power Transformers
SKU:POW-437fe2
Enhance power distribution with compliant Quick-Connect Chassis Mount Power Transformers in various sizes. Dual bobbin design ensures optimal performance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Quick-Connect Chassis Mount Power Transformers
$89.99
Quantity: 1
Claim Your Seller Account
Quick-Connect Chassis Mount Power Transformers
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

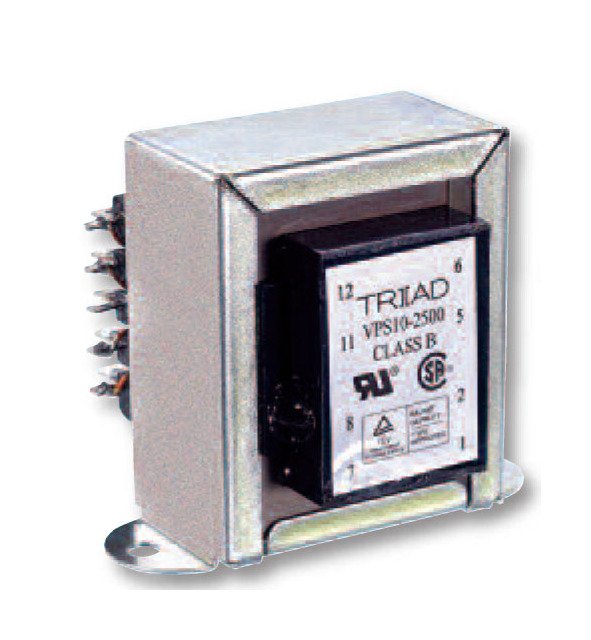

Experience unparalleled power transformation with our Quick-Connect Chassis Mount World Series™ Power Transformers. Compliant with a range of U.S. and International standards including CSA, IEC, TUV, and UL requirements, these transformers feature a dual bobbin design within an insulating shroud, constructed with UL approved high temperature material for optimal performance. Designed to eliminate the need for electrostatic shielding, the dual bobbin configuration ensures minimal capacitance between coils, providing efficient electrical isolation and versatility. Available in various sizes from 25 VA to 175 VA, these transformers come equipped with 'quick connect' terminations for easy installation and convenience.
Product Specifications
Note 0
Class 2/3 UL File: E65390

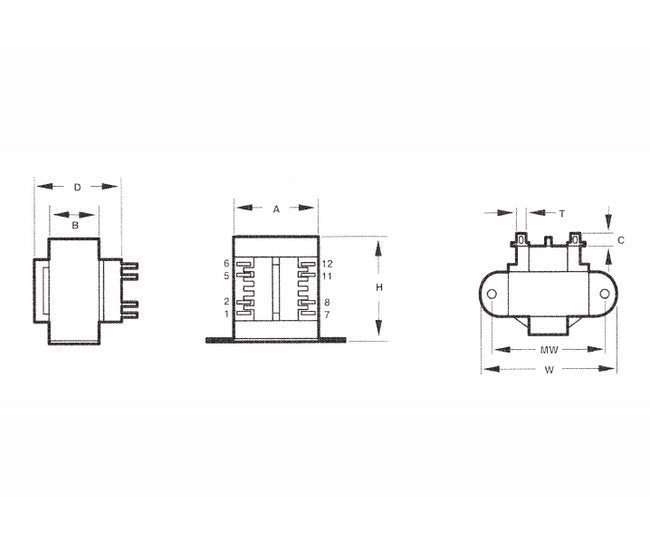

Specifications Depth D
1 15/16 in
Specifications Dimension A
2 in
Specifications Dimension B
1 1/8 in
Specifications Dimension C
5/16 in
Specifications Dimension T
3/16 in
Specifications Electrical Rating
25 V·A
Specifications Height H
2 5/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
12.0 V at 2.0 A
Specifications Secondary Series
24.0 V CT at 1.0 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.30 lb
Specifications Width W
2 13/16 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
