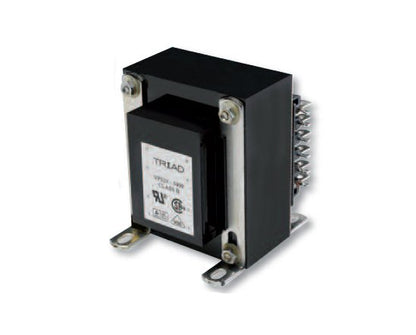

Experience unmatched reliability with our Chassis Mount Quick-Connect World Series™ Power Transformers. Designed to meet stringent U.S. and International standards like CSA, IEC, TUV, and UL, these transformers feature a dual bobbin design enclosed in UL-approved high-temperature material. With electrically isolated primary and secondary coils, minimal capacitance, and quick-connect terminations, these transformers ensure efficient power distribution without the need for electrostatic shielding.
Product Specifications
Specifications Depth D
2 5/16 in
Specifications Dimension B
1 3/8 in
Specifications Dimension C
5/16 in
Specifications Dimension T
3/16 in
Specifications Electrical Rating
80 V·A
Specifications Height H
3 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Length
2 1/4 in
Specifications Mounting Width
2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
8.0 V at 10.0 A
Specifications Secondary Series
16.0 V CT at 5.0 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
2.80 lb
Specifications Width W
2 1/2 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
