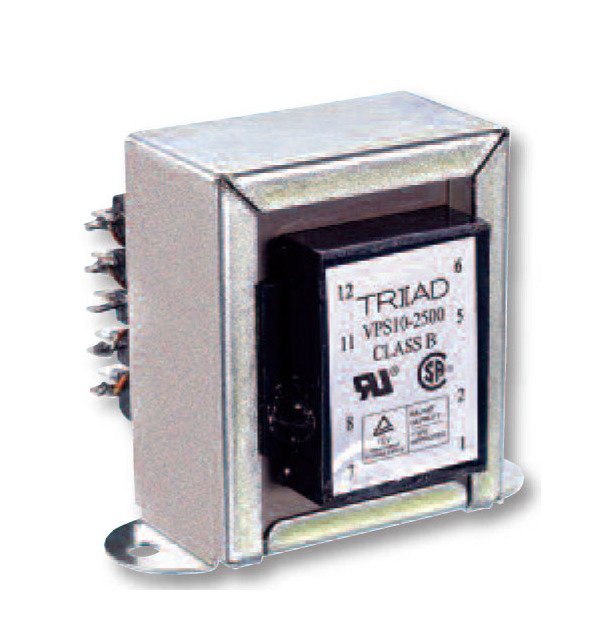

Upgrade your power systems with precision-engineered Chassis Mount Quick-Connect World Series™ Power Transformers. These transformers meet stringent U.S. and International standards including CSA, IEC, TUV, and UL requirements. Featuring a dual bobbin design housed in an insulating shroud with UL approved high temperature material, these transformers eliminate the need for electrostatic shielding. With primary and secondary coils electrically isolated, they offer safety and reliability. Available in sizes from 25 VA to 175 VA, with 'quick connect' terminations, these transformers ensure seamless integration and superior performance.
Product Specifications

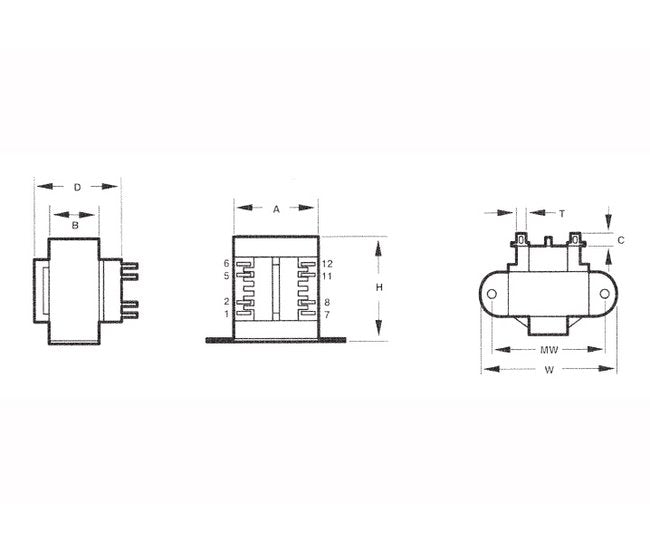

Specifications Depth D
2 in
Specifications Dimension A
2 5/16 in
Specifications Dimension B
1 1/8 in
Specifications Dimension C
5/16 in
Specifications Dimension T
3/16 in
Specifications Electrical Rating
43 V·A
Specifications Height H
2 11/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 13/16 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
115.0 V at 0.38 A
Specifications Secondary Series
230.0 V CT at 0.19 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.60 lb
Specifications Width W
3 1/8 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
