Quick-Connect Power Transformers
Quick-Connect Power Transformers
SKU:POW-c90098
Meet U.S. & International standards with our Chassis Mount Quick-Connect World Series™ Power Transformers. Dual bobbin design for ultimate safety.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Quick-Connect Power Transformers
$89.99
Quantity: 1
Claim Your Seller Account
Quick-Connect Power Transformers
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

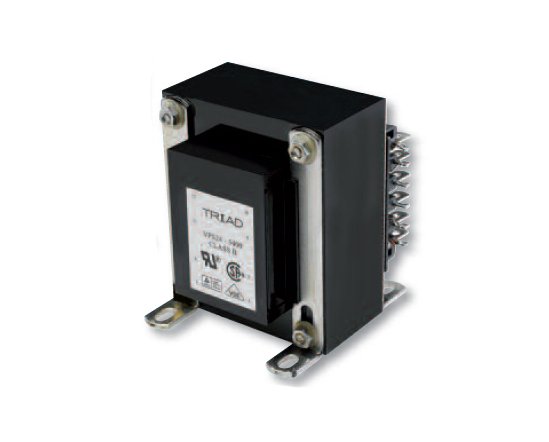

Enhance your power systems with our Chassis Mount Quick-Connect World Series™ Power Transformers. Designed to meet stringent U.S. and International standards like CSA, IEC, TUV, and UL, these transformers feature a dual bobbin design within an insulating shroud. Eliminating the need for electrostatic shielding, they offer exceptional electrical isolation between primary and secondary coils. Available in sizes ranging from 25 VA to 175 VA, with convenient 'quick connect' terminations, our transformers provide reliable power solutions for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

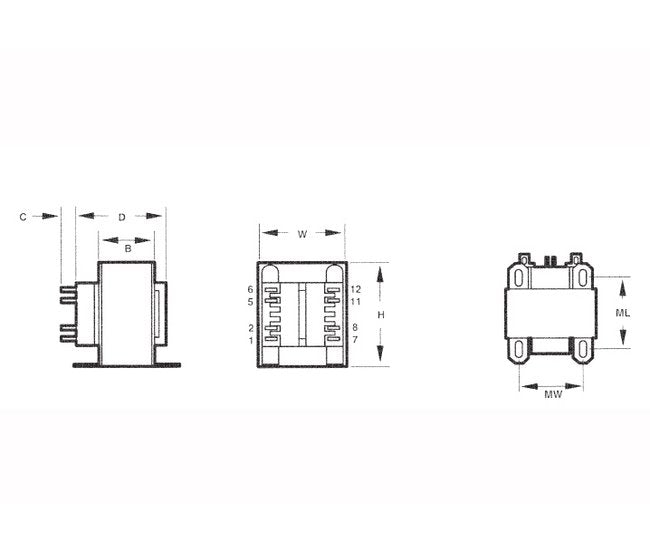

Specifications Depth D
2 5/16 in
Specifications Dimension B
1 3/8 in
Specifications Dimension C
5/16 in
Specifications Dimension T
3/16 in
Specifications Electrical Rating
80 V·A
Specifications Height H
3 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Length
2 1/4 in
Specifications Mounting Width
2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
6.3 V at 12.6 A
Specifications Secondary Series
12.6 V CT at 6.3 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
2.80 lb
Specifications Width W
2 1/2 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
