Quick-Connect Power Transformers
Quick-Connect Power Transformers
SKU:POW-237f45
Meet U.S. and International standards with Chassis Mount Quick-Connect World Series™ Power Transformers. Convenient 'quick connect' terminations ensure easy installation.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Quick-Connect Power Transformers
$89.99
Quantity: 1
Claim Your Seller Account
Quick-Connect Power Transformers
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

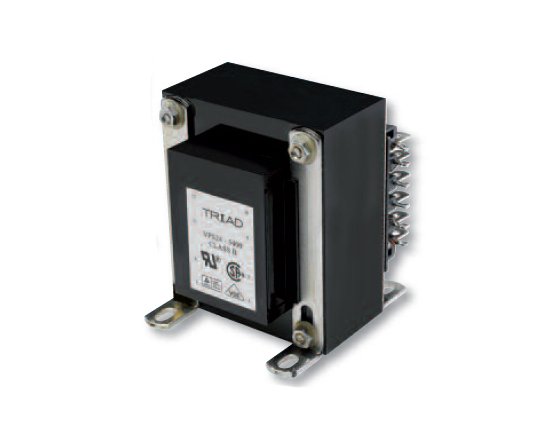

The Chassis Mount Quick-Connect World Series™ Power Transformers are expertly crafted to meet the stringent requirements of U.S. and International standards, including CSA, IEC, TUV, and UL certifications. Encased in a high-temperature UL approved material, these transformers feature a dual bobbin design within an insulating shroud, eliminating the need for electrostatic shielding. With primary and secondary coils electrically isolated from each other and the core, these transformers ensure optimal performance and safety. Ranging from 25 VA to 175 VA, these transformers come with convenient 'quick connect' terminations, making installation a breeze for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

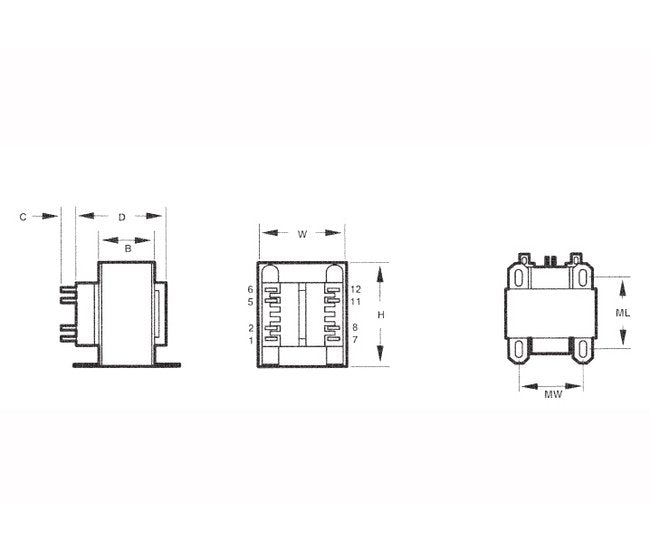

Specifications Depth D
2 11/16 in
Specifications Dimension B
1 5/8 in
Specifications Dimension C
3/8 in
Specifications Dimension T
1/4 in
Specifications Electrical Rating
130 V·A
Specifications Height H
3 3/8 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Length
2 1/2 in
Specifications Mounting Width
2 1/4 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
14.0 V at 9.2 A
Specifications Secondary Series
28.0 V CT at 4.6 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
4.10 lb
Specifications Width W
2 13/16 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
