Quick-Connect World Series Power Transformers
Quick-Connect World Series Power Transformers
SKU:POW-284cbf
High-quality Quick-Connect World Series Power Transformers designed to meet rigorous industry standards and ensure reliable performance in industrial settings.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Quick-Connect World Series Power Transformers
$89.99
Quantity: 1
Claim Your Seller Account
Quick-Connect World Series Power Transformers
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

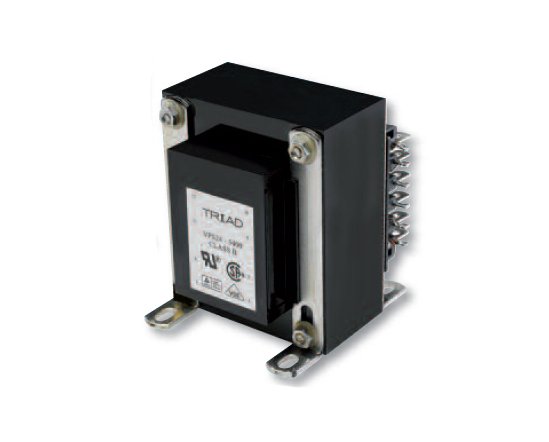

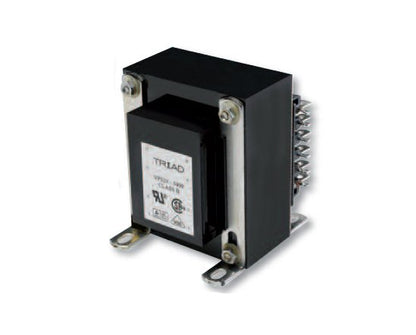

The Quick-Connect World Series Power Transformers are meticulously engineered to meet stringent U.S. and International standards, including CSA, IEC, TUV, and UL requirements. Featuring a dual bobbin design encased in a high-temperature UL approved material, these transformers provide exceptional electrical isolation between primary and secondary coils. Capacitance is minimized thanks to the dual bobbin configuration, eliminating the need for electrostatic shielding. Available in various VA sizes with quick-connect terminations, these transformers ensure reliable performance and ease of installation for a wide range of industrial applications.
Product Specifications

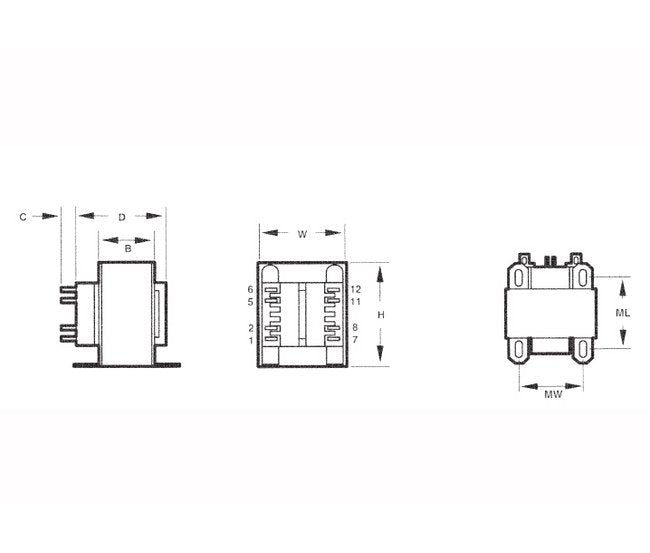

Specifications Depth D
2 11/16 in
Specifications Dimension B
1 5/8 in
Specifications Dimension C
3/8 in
Specifications Dimension T
1/4 in
Specifications Electrical Rating
130 V·A
Specifications Height H
3 3/8 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Length
2 1/2 in
Specifications Mounting Width
2 1/4 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
10.0 V at 13.0 A
Specifications Secondary Series
20.0 V CT at 6.5 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
4.10 lb
Specifications Width W
2 13/16 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
