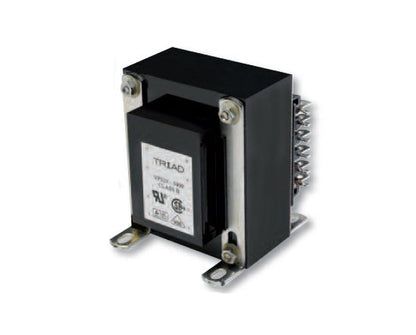

Quick-Connect World Series⢠Power Transformers
Quick-Connect World Series⢠Power Transformers
SKU:POW-ccc8b0
State-of-the-art Power Transformers meeting high safety and reliability standards for diverse applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Quick-Connect World Series⢠Power Transformers
$129.99
Quantity: 1
Claim Your Seller Account
Quick-Connect World Series⢠Power Transformers
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Quick-Connect World Series⢠Power Transformers are meticulously designed to comply with a range of U.S. and International standards including CSA, IEC, TUV, and UL requirements. Featuring a dual bobbin design encased in an insulating shroud made of UL approved high temperature material, these transformers offer exceptional safety and reliability. With a unique configuration that minimizes capacitance between coils, electrostatic shielding is no longer necessary. The primary and secondary windings are fully insulated from each other and the core. Offering sizes from 25 VA to 175 VA, these chassis mount transformers come with convenient 'quick connect' terminations for ease of installation and use in various applications.
Product Specifications
Specifications Depth D
2 13/16 in
Specifications Dimension B
1 5/8 in
Specifications Dimension C
3/8 in
Specifications Dimension T
1/4 in
Specifications Electrical Rating
175 V·A
Specifications Height H
3 3/4 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Length
2 1/2 in
Specifications Mounting Width
2 1/2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
8.0 V at 22.0 A
Specifications Secondary Series
16.0 V CT at 11.0 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
5.50 lb
Specifications Width W
3 1/8 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
