Quick-Connect World Series⢠Power Transformers - Chassis Mount
Quick-Connect World Series⢠Power Transformers - Chassis Mount
SKU:POW-b96e40
Enhanced Quick-Connect World Series⢠Power Transformers - ideal for versatile power needs with advanced safety features and easy setup.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Quick-Connect World Series⢠Power Transformers - Chassis Mount
$69.99
Quantity: 1
Claim Your Seller Account
Quick-Connect World Series⢠Power Transformers - Chassis Mount
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

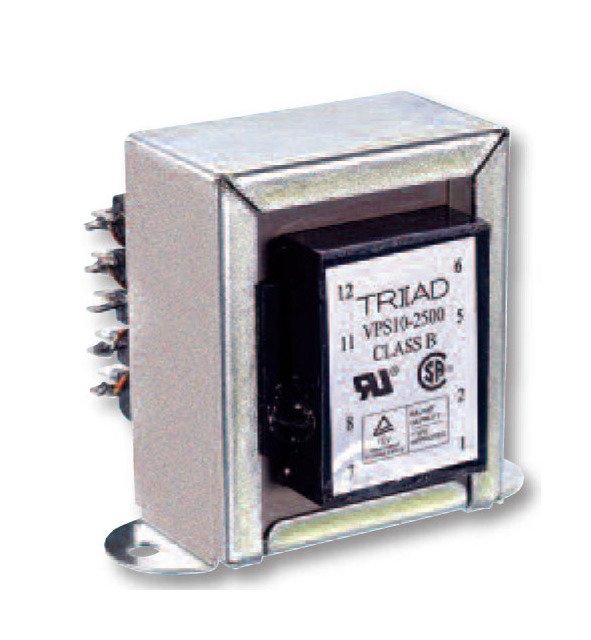

The Quick-Connect World Series⢠Power Transformers are expertly designed to meet rigorous U.S. and International standards, such as CSA, IEC, TUV, and UL requirements. Featuring a dual bobbin design within an insulating shroud made of UL-approved high-temperature material, these transformers eliminate the need for electrostatic shielding. With sizes ranging from 25 VA to 175 VA, and 'quick connect' terminations, they offer seamless integration and optimal performance. Both primary and secondary coils are electrically isolated from each other and from the core, providing reliable and safe operation in any setting.

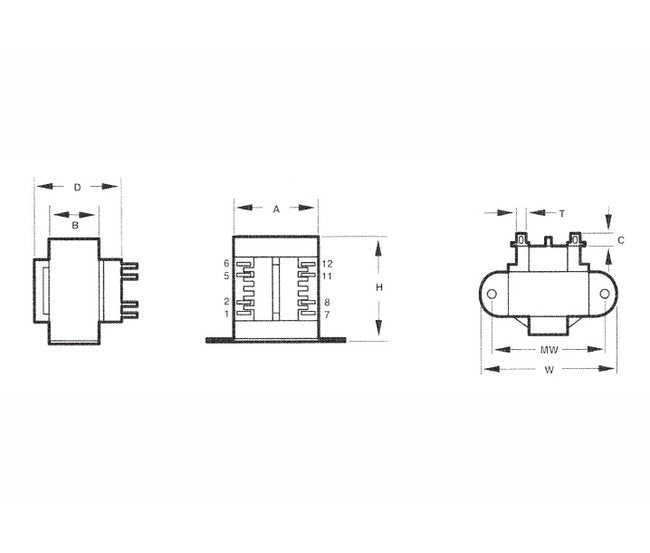

Product Specifications
Specifications Depth D
1 15/16 in
Specifications Dimension A
2 in
Specifications Dimension B
1 1/8 in
Specifications Dimension C
5/16 in
Specifications Dimension T
3/16 in
Specifications Electrical Rating
25 V·A
Specifications Height H
2 5/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
5.0 V at 5.0 A
Specifications Secondary Series
10.0 V CT at 2.5 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.30 lb
Specifications Width W
2 13/16 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
