Quick Release Cylindrical Mounting Strap Clamp

Name: Quick Release Cylindrical Mounting Strap Clamp
Brand: HYDAC Technology Corporation
SKU: ACC-ffab86
Price: 32.99 USD
Availability: OutOfStock

SKU:ACC-ffab86

Securely mount cylindrical components with the Quick Release Cylindrical Mounting Strap Clamp, featuring a durable steel build and swivel bolt for easy installation.

$32.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

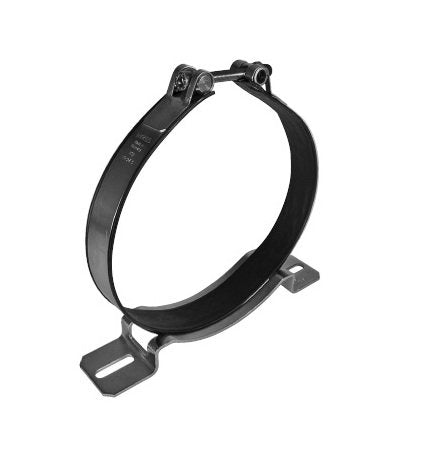

The Quick Release Cylindrical Mounting Strap Clamp, model HRGKSM 1 R 101-109/106 ST, is a versatile solution for securely mounting cylindrical components. Crafted from durable steel with a zinc-plated finish, this swivel bolt clamp offers a tight, lasting fit thanks to its polyethylene profile that resists compression. With dimensions ranging from 4 to 4.3 inches in diameter, and various key measurements to accommodate different configurations, this clamp ensures stability and ease of installation. Its unique swivel assembly allows for effortless installation, a secure hold, and easy access for maintenance. Ideal for non-accumulator applications, this clamp is a reliable choice for diverse mounting needs in industrial settings.

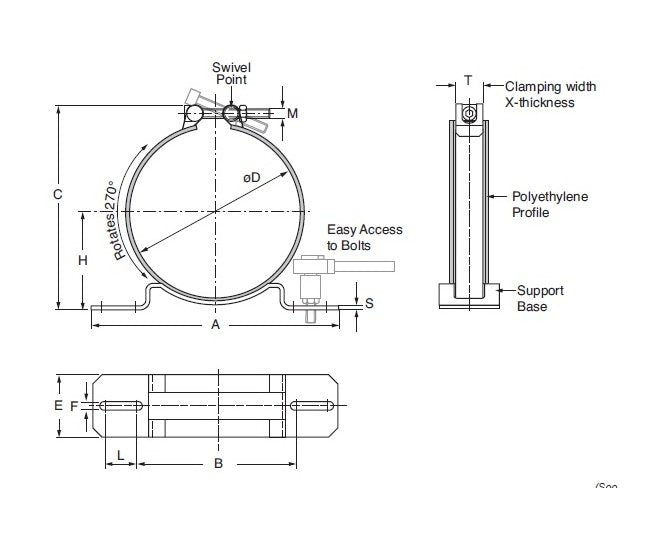

Product Specifications

Dimensions Diameter Max

4.3 in | 109 mm

Dimensions Diameter Min

4 in | 101 mm

Dimensions Dimension A

6.14 in | 156 mm

Dimensions Dimension B

3.35 in | 85 mm

Dimensions Dimension Cmax

5.4 in | 137 mm

Dimensions Dimension E

1.57 in | 40 mm

Dimensions Dimension F

0.35 in | 9 mm

Dimensions Dimension H

2.3 to 2.5 in | 58.5 to 62.5 mm

Dimensions Dimension L

0.31 in | 8 mm

Dimensions Dimension M

M6 x 50

Dimensions Dimension S

0.12 in | 3 mm

Dimensions Dimension T

0.8 x 0.03 in | 20 x 0.8 mm

Features 0

Swivel assembly provides for simple installation and a tight fitSupport base provides easy access to bolts / unit easy to installThe clamp rotates ~270ÂºF / Easy accessPolyethylene profile does not compressClamp stays tight over time

Note 0

Dimensions are in inches (mm) and lbs (kg).Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.For larger sizes contact HYDAC Accessories Group

Specifications Bun

Specifications Clamping Band Material

Steel

Specifications Division

ACCESSORIES

Specifications Finish

Zinc Plated

Specifications Locking Type

Swivel Bolt

Specifications Model Code Description

HRGKSM 1 R 101-109/106 ST

Specifications Product

CLAMPS

Specifications Product Group Family

MOUNTING COMPONENTS

Specifications Profile Material

Polyethylene

Specifications Type

Quick Release Swivel Bolt Clamp

Specifications Type Number

106

Specifications Weight

0.15 kg | 0.33 lb
