Quick Release Swivel Bolt Clamp for Cylindrical Components

Name: Quick Release Swivel Bolt Clamp for Cylindrical Components
Brand: HYDAC Technology Corporation
SKU: ACC-43f085
Price: 49.99 USD
Availability: OutOfStock

SKU:ACC-43f085

Durable Quick Release Swivel Bolt Clamp for secure mounting of cylindrical components. Easy to install with polyethylene profile for long-lasting tight fit.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

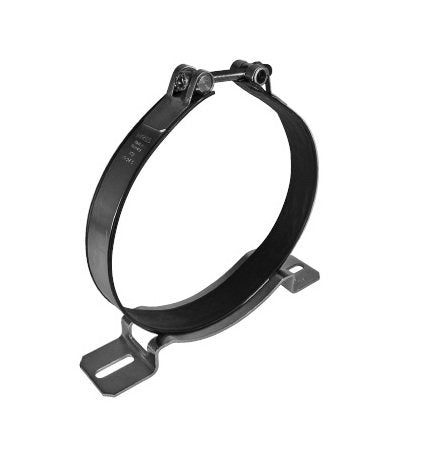

The Quick Release Swivel Bolt Clamp for Cylindrical Components, HRGKSM 0 R 96-100/100 ST, is a durable and efficient solution for mounting cylindrical parts. Made of steel with a zinc-plated finish, it ensures a secure hold with its swivel bolt locking mechanism. The polyethylene profile prevents compression and maintains a tight fit over time. This clamp offers easy installation with a swivel assembly and support base for quick access, making it suitable for various applications beyond accumulators.

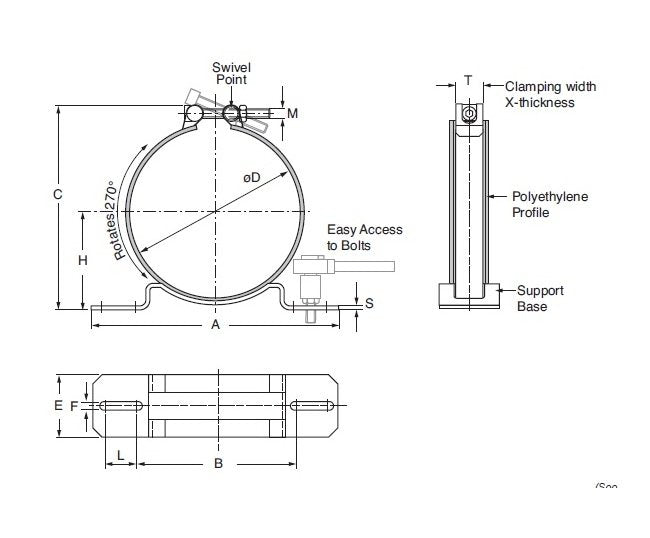

Product Specifications

Dimensions Diameter Max

3.9 in | 100 mm

Dimensions Diameter Min

3.7 in | 95 mm

Dimensions Dimension A

4.72 in | 120 mm

Dimensions Dimension B

3.35 in | 85 mm

Dimensions Dimension Cmax

4.7 in | 120 mm

Dimensions Dimension E

1.57 in | 40 mm

Dimensions Dimension F

0.35 in | 9 mm

Dimensions Dimension H

2.1 to 2.2 in | 54.5 to 56.5 mm

Dimensions Dimension L

0.31 in | 8 mm

Dimensions Dimension M

M6 x 50

Dimensions Dimension S

0.12 in | 3 mm

Dimensions Dimension T

0.8 x 0.03 in | 20 x 0.8 mm

Features 0

Swivel assembly provides for simple installation and a tight fitSupport base provides easy access to bolts / unit easy to installThe clamp rotates ~270ÂºF / Easy accessPolyethylene profile does not compressClamp stays tight over time

Note 0

Dimensions are in inches (mm) and lbs (kg).Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.For larger sizes contact HYDAC Accessories Group

Specifications Bun

Specifications Clamping Band Material

Steel

Specifications Division

ACCESSORIES

Specifications Finish

Zinc Plated

Specifications Locking Type

Swivel Bolt

Specifications Model Code Description

HRGKSM 0 R 96-100/100 ST

Specifications Product

CLAMPS

Specifications Product Group Family

MOUNTING COMPONENTS

Specifications Profile Material

Polyethylene

Specifications Type

Quick Release Swivel Bolt Clamp

Specifications Type Number

100

Specifications Weight

0.15 kg | 0.33 lb

Quick Release Swivel Bolt Clamp for Cylindrical Components
