Quick Release Swivel Bolt Clamp for Cylindrical Components

Name: Quick Release Swivel Bolt Clamp for Cylindrical Components
Brand: HYDAC Technology Corporation
SKU: ACC-6213a2
Price: 34.99 USD
Availability: OutOfStock

SKU:ACC-6213a2

Versatile Quick Release Swivel Bolt Clamp for secure and easy mounting of cylindrical components. Durable steel construction with polyethylene profile for long-term reliability.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

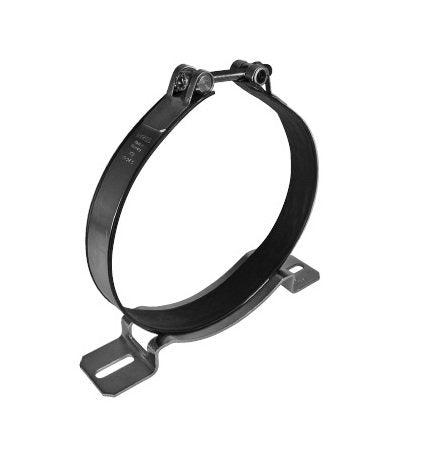

The Quick Release Swivel Bolt Clamp (Model: HRGKSM 2 R 163-171/169 ST) is a versatile mounting solution designed for cylindrical components, featuring a sturdy steel clamping band with zinc plating. Ideal for various applications, this clamp offers a tight fit with a swivel bolt locking mechanism that allows for easy installation. The polyethylene profile ensures lasting durability and prevents compression, while the swivel assembly enables a rotation of approximately 270 degrees for optimal positioning. With user-friendly features and precise dimensions, this clamp is a reliable choice for mounting needs.

Product Specifications

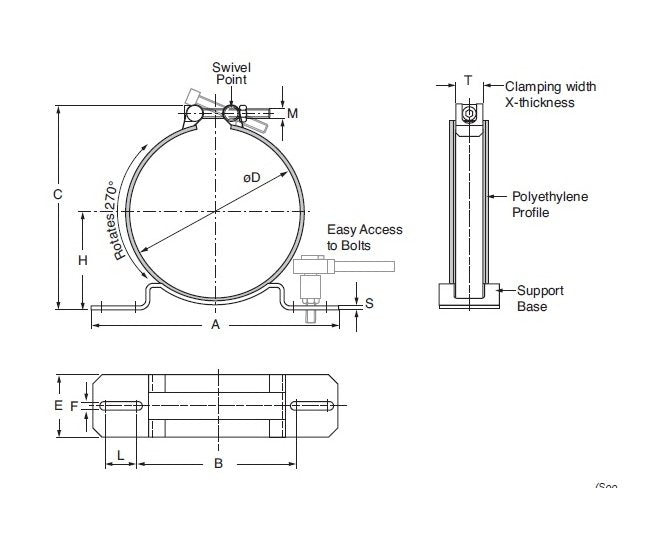

Dimensions Diameter Max

6.7 in | 171 mm

Dimensions Diameter Min

6.4 in | 163 mm

Dimensions Dimension A

9.3 in | 236 mm

Dimensions Dimension B

3.35 in | 85 mm

Dimensions Dimension Cmax

7.9 in | 200 mm

Dimensions Dimension E

1.57 in | 40 mm

Dimensions Dimension F

0.35 in | 9 mm

Dimensions Dimension H

3.5 to 3.7 in | 90.1 to 94.1 mm

Dimensions Dimension L

0.31 in | 8 mm

Dimensions Dimension M

M6 x 50

Dimensions Dimension S

0.12 in | 3 mm

Dimensions Dimension T

0.8 x 0.03 in | 20 x 0.8 mm

Features 0

Swivel assembly provides for simple installation and a tight fitSupport base provides easy access to bolts / unit easy to installThe clamp rotates ~270ÂºF / Easy accessPolyethylene profile does not compressClamp stays tight over time

Note 0

Dimensions are in inches (mm) and lbs (kg).Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.For larger sizes contact HYDAC Accessories Group

Specifications Bun

Specifications Clamping Band Material

Steel

Specifications Division

ACCESSORIES

Specifications Finish

Zinc Plated

Specifications Locking Type

Swivel Bolt

Specifications Model Code Description

HRGKSM 2 R 163-171/169 ST

Specifications Product

CLAMPS

Specifications Product Group Family

MOUNTING COMPONENTS

Specifications Profile Material

Polyethylene

Specifications Type

Quick Release Swivel Bolt Clamp

Specifications Type Number

169

Specifications Weight

0.15 kg | 0.33 lb
