Quick Release Swivel Bolt Clamp for Cylindrical Components

Name: Quick Release Swivel Bolt Clamp for Cylindrical Components
Brand: HYDAC Technology Corporation
SKU: ACC-af2fdc
Price: 29.99 USD
Availability: OutOfStock

SKU:ACC-af2fdc

Securely mount cylindrical components with ease using this Quick Release Swivel Bolt Clamp.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

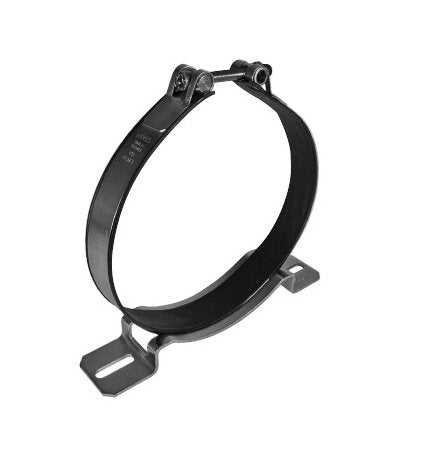

The Quick Release Swivel Bolt Clamp for Cylindrical Components is a versatile mounting solution designed to securely hold cylindrical components in place. This clamp features a durable steel clamping band with a zinc-plated finish for corrosion resistance. The swivel bolt locking mechanism allows for quick and easy installation, while the polyethylene profile ensures a secure grip without compression. With dimensions ranging from 5.4 to 5.7 inches in diameter and a 270-degree swivel capability, this clamp offers practicality and efficiency for various non-accumulator applications.

Product Specifications

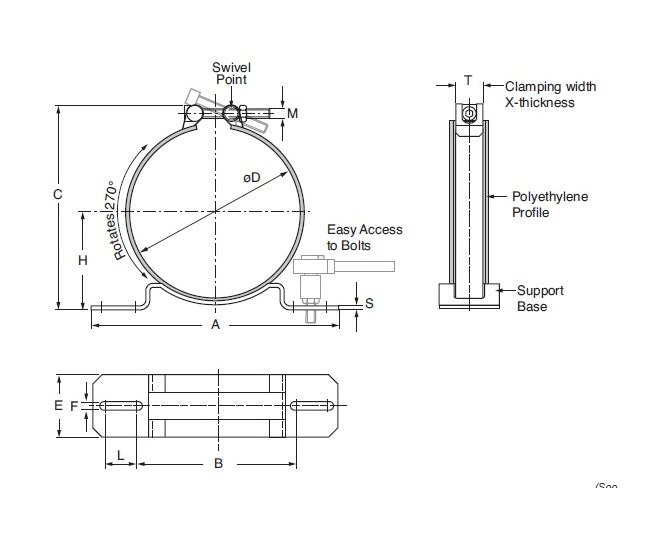

Dimensions Diameter Max

5.7 in | 145 mm

Dimensions Diameter Min

5.4 in | 138 mm

Dimensions Dimension A

6.14 in | 156 mm

Dimensions Dimension B

3.35 in | 85 mm

Dimensions Dimension Cmax

6.8 in | 172 mm

Dimensions Dimension E

1.57 in | 40 mm

Dimensions Dimension F

0.35 in | 9 mm

Dimensions Dimension H

3 to 3.1 in | 76.0 to 80.0 mm

Dimensions Dimension L

0.31 in | 8 mm

Dimensions Dimension M

M6 x 50

Dimensions Dimension S

0.12 in | 3 mm

Dimensions Dimension T

0.8 x 0.03 in | 20 x 0.8 mm

Features 0

Swivel assembly provides for simple installation and a tight fitSupport base provides easy access to bolts / unit easy to installThe clamp rotates ~270ÂºF / Easy accessPolyethylene profile does not compressClamp stays tight over time

Note 0

Dimensions are in inches (mm) and lbs (kg).Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.For larger sizes contact HYDAC Accessories Group

Specifications Bun

Specifications Clamping Band Material

Steel

Specifications Division

ACCESSORIES

Specifications Finish

Zinc Plated

Specifications Locking Type

Swivel Bolt

Specifications Model Code Description

HRGKSM 1 R 137-145/142 ST

Specifications Product

CLAMPS

Specifications Product Group Family

MOUNTING COMPONENTS

Specifications Profile Material

Polyethylene

Specifications Type

Quick Release Swivel Bolt Clamp

Specifications Type Number

142

Specifications Weight

0.15 kg | 0.33 lb
