Quick Release Swivel Bolt Steel Clamp
Quick Release Swivel Bolt Steel Clamp
SKU:ACC-1248f1
Versatile and durable Quick Release Swivel Bolt Steel Clamp for secure mounting of cylindrical components.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Quick Release Swivel Bolt Steel Clamp
$24.99
Quantity: 1
Claim Your Seller Account
Quick Release Swivel Bolt Steel Clamp
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

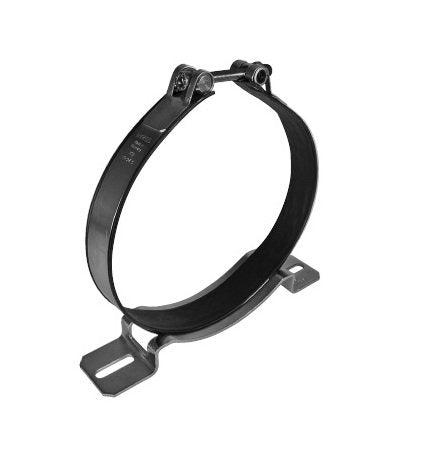

The Quick Release Swivel Bolt Steel Clamp is a versatile mounting solution designed to securely hold cylindrical components. With a sturdy steel clamping band and a zinc-plated finish, this clamp offers durability and reliability in various applications. The swivel bolt locking mechanism allows for easy installation and a tight fit, while the polyethylene profile prevents compression, ensuring long-lasting performance. Its innovative design, rotating capability of approximately 270 degrees, and user-friendly support base make it ideal for both accumulator and non-accumulator uses.

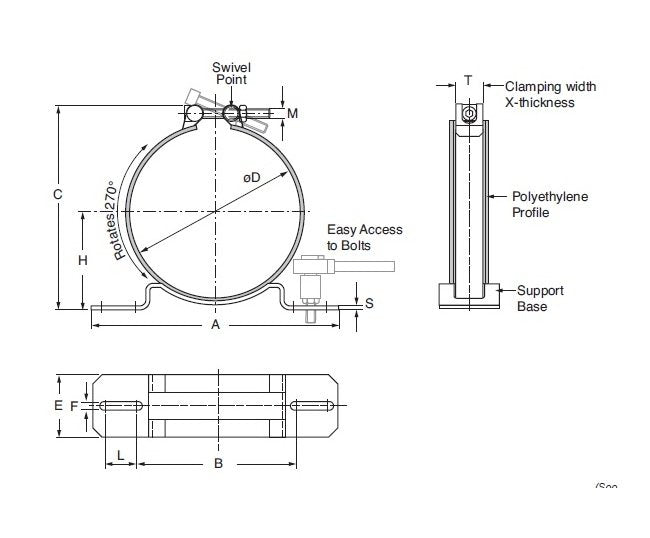

Product Specifications
Dimensions Diameter Max
3 in | 76 mm
Dimensions Diameter Min
2.9 in | 73 mm
Dimensions Dimension A
4.72 in | 120 mm
Dimensions Dimension B
3.35 in | 85 mm
Dimensions Dimension Cmax
3.8 in | 96 mm
Dimensions Dimension E
1.57 in | 40 mm
Dimensions Dimension F
0.35 in | 9 mm
Dimensions Dimension H
1.7 to 1.8 in | 43.5 to 45.0 mm
Dimensions Dimension L
0.31 in | 8 mm
Dimensions Dimension M
M6 x 50
Dimensions Dimension S
0.12 in | 3 mm
Dimensions Dimension T
0.8 x 0.03 in | 20 x 0.8 mm
Features 0
Swivel assembly provides for simple installation and a tight fitSupport base provides easy access to bolts / unit easy to installThe clamp rotates ~270ºF / Easy accessPolyethylene profile does not compressClamp stays tight over time
Note 0
Dimensions are in inches (mm) and lbs (kg).Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.For larger sizes contact HYDAC Accessories Group
Specifications Bun
EA
Specifications Clamping Band Material
Steel
Specifications Division
ACCESSORIES
Specifications Finish
Zinc Plated
Specifications Locking Type
Swivel Bolt
Specifications Model Code Description
HRGKSM 0 R 73-76/76 ST
Specifications Product
CLAMPS
Specifications Product Group Family
MOUNTING COMPONENTS
Specifications Profile Material
Polyethylene
Specifications Type
Quick Release Swivel Bolt Clamp
Specifications Type Number
76
Specifications Weight
0.15 kg | 0.33 lb
