Quick Swivel Bolt Cylindrical Straps
Quick Swivel Bolt Cylindrical Straps
SKU:ACC-7fd879
Securely mount cylindrical components with ease using our Quick Swivel Bolt Cylindrical Straps. Durable steel construction, polyethylene profile for a tight fit, and swivel assembly for easy installation.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Quick Swivel Bolt Cylindrical Straps
$24.99
Quantity: 1
Claim Your Seller Account
Quick Swivel Bolt Cylindrical Straps
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

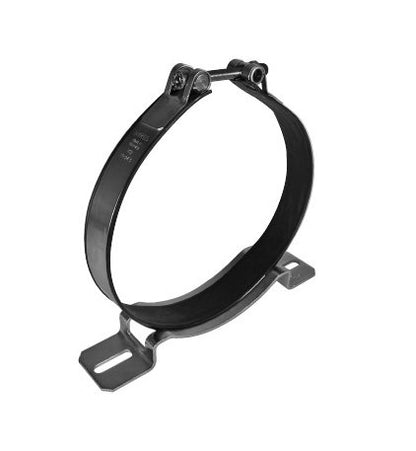

Introducing our Quick Swivel Bolt Cylindrical Straps, ideal for mounting cylindrical components securely. This clamp, model HRGKSM 0 R 62-65/65 ST, features a Quick Release Swivel Bolt design, made of durable steel with a zinc-plated finish. The polyethylene profile ensures a tight and lasting fit, supported by a swivel assembly for easy installation. With dimensions ranging from 2.4 to 2.6 inches in diameter and various key measurements, this clamp is designed for practicality and reliability, perfect for both consumer and institutional applications.

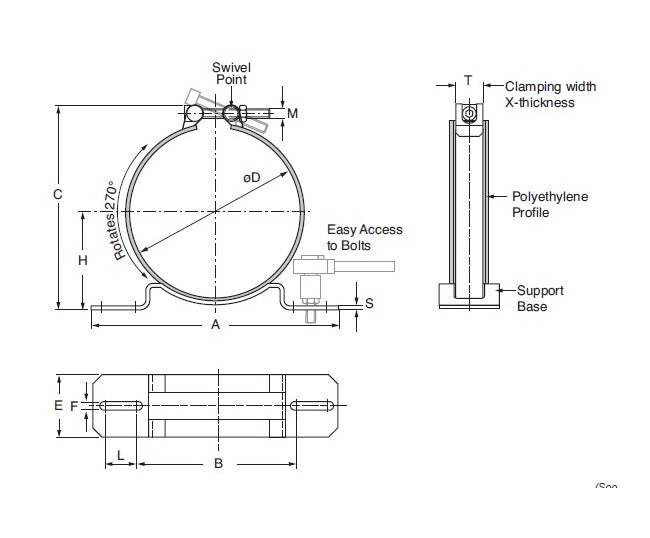

Product Specifications
Dimensions Diameter Max
2.6 in | 66 mm
Dimensions Diameter Min
2.4 in | 62 mm
Dimensions Dimension A
4.72 in | 120 mm
Dimensions Dimension B
3.35 in | 85 mm
Dimensions Dimension Cmax
3.4 in | 85 mm
Dimensions Dimension E
1.57 in | 40 mm
Dimensions Dimension F
0.35 in | 9 mm
Dimensions Dimension H
0.3 to 1.6 in | 8.0 to 39.5 mm
Dimensions Dimension L
0.31 in | 8 mm
Dimensions Dimension M
M6 x 50
Dimensions Dimension S
0.12 in | 3 mm
Dimensions Dimension T
0.8 x 0.03 in | 20 x 0.8 mm
Features 0
Swivel assembly provides for simple installation and a tight fitSupport base provides easy access to bolts / unit easy to installThe clamp rotates ~270ºF / Easy accessPolyethylene profile does not compressClamp stays tight over time
Note 0
Dimensions are in inches (mm) and lbs (kg).Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.For larger sizes contact HYDAC Accessories Group
Specifications Bun
EA
Specifications Clamping Band Material
Steel
Specifications Division
ACCESSORIES
Specifications Finish
Zinc Plated
Specifications Locking Type
Swivel Bolt
Specifications Model Code Description
HRGKSM 0 R 62-65/65 ST
Specifications Product
CLAMPS
Specifications Product Group Family
MOUNTING COMPONENTS
Specifications Profile Material
Polyethylene
Specifications Type
Quick Release Swivel Bolt Clamp
Specifications Type Number
65
Specifications Weight
0.15 kg | 0.33 lb
