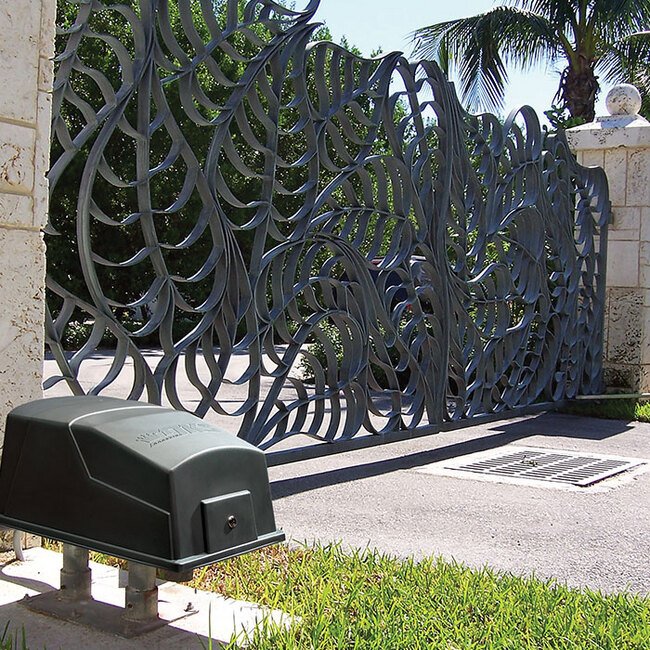

The QuietSwing 1/2 HP Swing Gate Operator is designed for residential and commercial applications, offering a unique, aesthetically pleasing, and quiet operation. Constructed with G90 galvanized steel, it is rust-resistant and ensures durability. Featuring advanced safety mechanisms like electronic and mechanical obstruction detection systems, along with automatic electronic limits, this operator meets UL 325 and 991 standards for safety and reliability. With self-adjusting magnetic limits, fail-safe release, and tamper detect circuit, it provides secure and smooth gate operation.
Product Specifications
Additional Information Additional Information
The electronic magnetic limits will never wear out or break and they are easily adjusted. The solid steel frame and belt-driven gear box make this operator one of the quietest on the market today.The DKS DC 6524 Swing Gate Operator is perfect where backup power is critical, as it will keep running even when AC power has been lost. The solar power version is ideal in applications where AC power is unavailable, allowing you to add your own solar system for power, or you can choose the DKS solar kit. This Swing Gate Operator offers versatile and safe operation in a small, compact design, and is ideally suited for residential or commercial applications.With protection in mind, these Operators contain an electronic and mechanical inherent reverse system for two methods of obstruction detection. The automatic electronic limits, along with the microprocessor-based electronic control board provide advanced features not typically found in Operators in this class. For versatile installation, smooth and quiet operation, pedestrian and vehicle protection, plus clean aesthetics - DKS has it all.
Advantages Advantages
Aesthetically Pleasing Original Quiet Design1/2 horsepower for gates up to 10 ft long weighing up to 400 lb.
Applications Applications
Apartment / College Residents HallsApartment Complex / Gated CommunitiesCommercial / IndustrialParkingMixed Use BuildingsResidentialSelf Storage
Duty Cycle Type Duty Cycle Type
Limited
Key Features Key Features

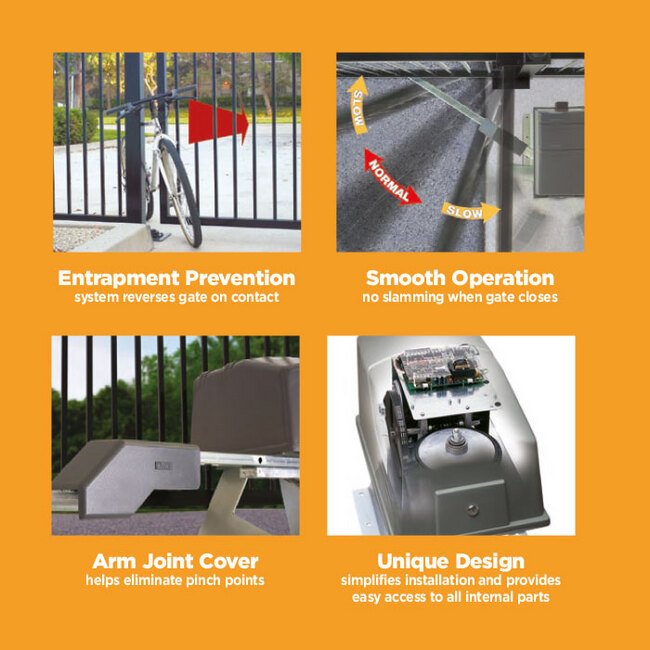

Self-adjusting, no maintenance magnetic limits.Overlap feature for dual swing gate operation.Designed with a built-in primary and secondary entrapment prevention system.Ports for plug-in loop detectors.Fail-safe release.Tamper detect circuit.Gate tracker reporting output.Programming switches.Built-in reset switch.Built-in power On/Off switch.
Options Options
Bi-parting gate connection cable (6050 secondary operator is shipped with 30-feet of cable.)Post or pad mount - specify which.Plug-in loop detectors.Heater kit for cold environments.Surge suppressors.Uphill Arm Pivot Kit
Specifications 90 Degree Opening Time
Approximately 12 s
Specifications Alternating Current Ac Voltage
115 V
Specifications Class Of Operation
Class I
Specifications Convenience Outlets
Yes
Specifications Direct Current Dc Convenience Open Option Availab
No
Specifications Frame Material
G90 Galvanized Steel
Specifications Gate Tracker Data Output
Yes
Specifications Installation Type

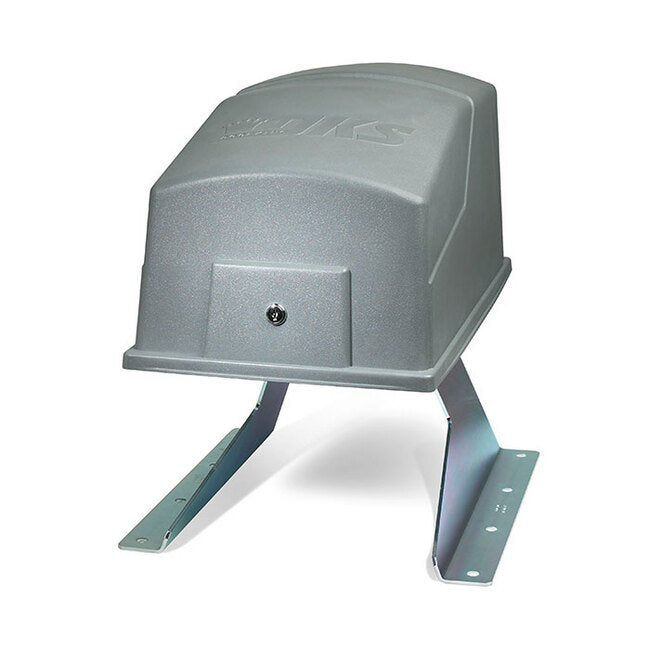

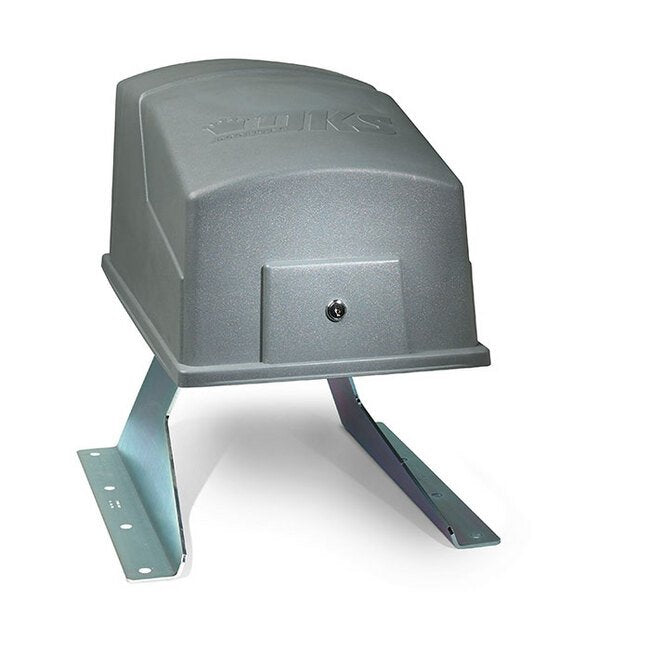

Directly on a Concrete Pad | Post Mounted
Specifications Limited Factory Warranty
5 y
Specifications Limit Switches
Self-adjusting, No Maintenance Magnetic Limits
Specifications Manual Release
Fail Safe | Keyed
Specifications Maximum Gate Length
10 ft | 3.0 m
Specifications Maximum Gate Weight
400 lb | 181 kg
Specifications Motor Power
1/2 hp
Specifications Mounting Type
Pad | Post
Specifications Number Of Convenience Outlets
2
Specifications Number Of Phase
1
Specifications Operating Temperature
-12 to 62 ºC | 10 to 140 ºF
Specifications Overlap Feature For Bi Parting Operation
Yes
Specifications Ports For Plug In Loop Detectors
Ports for plug-in open and reverse loop detectors (DKS plug-in detectors only)
Specifications Slow Start Slow Stop Operation Type
Two-piece articulating arm mechanical slow-start / slow-stop function
Specifications Solar Compatible
No
Specifications Standards
Compliant with Underwriters' Laboratories (UL) 325 and 991 | Edison Testing Laboratories (ETL) Listed
Specifications Usage
Residential
Technical Specifications Technical Specifications

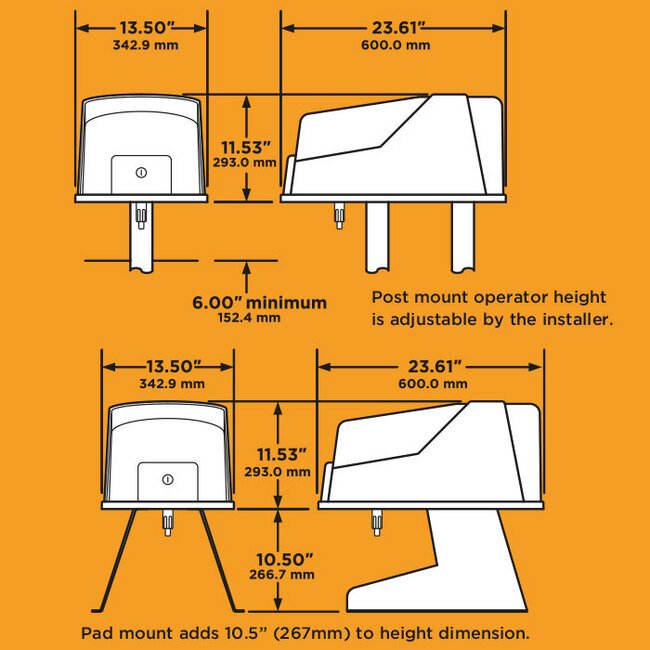

GATE TRACKERTM Reporting output provides operator data to a DKS 1833, 1835, 1837 or 1838 access control systemMaximum gate width 10-feet.Maximum gate weight 400 pounds. (Assumes gate swings level and is in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator).Swings gate 90 degrees in approximately 10-seconds.1/2 HP limited-duty motor.115 VAC, 60 Hz, 4.3AClass I applications.Compliant with UL 325 and 991. ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices need to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)Dimensions (operator only): 13.5 "W x 11.53 "H x 23.61 "D ( Height of operator only. Actual height above ground is determined by which mounting method is used)
