R-ECO A 3-267 Motorized Initial Pinch Three Rolls Bending Machine
R-ECO A 3-267 Motorized Initial Pinch Three Rolls Bending Machine
SKU:PLA-5f5146
Cost-effective and efficient motorized bending machine for small parts, featuring robust construction and precise control.
Regular price
$6,899.99
Regular price
Sale price
$6,899.99
Unit price
per
Initiate Order
R-ECO A 3-267 Motorized Initial Pinch Three Rolls Bending Machine
$6,899.99
Quantity: 1
Claim Your Seller Account
R-ECO A 3-267 Motorized Initial Pinch Three Rolls Bending Machine
$6,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

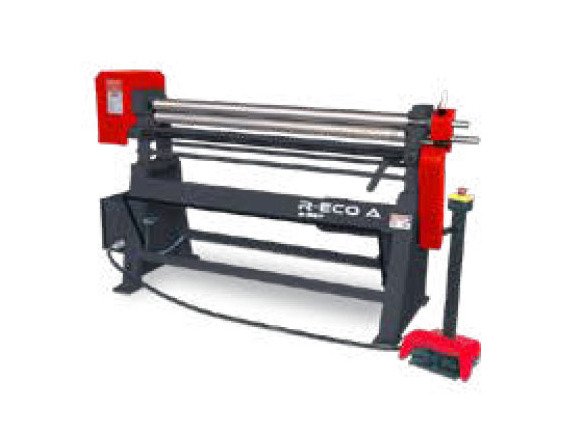

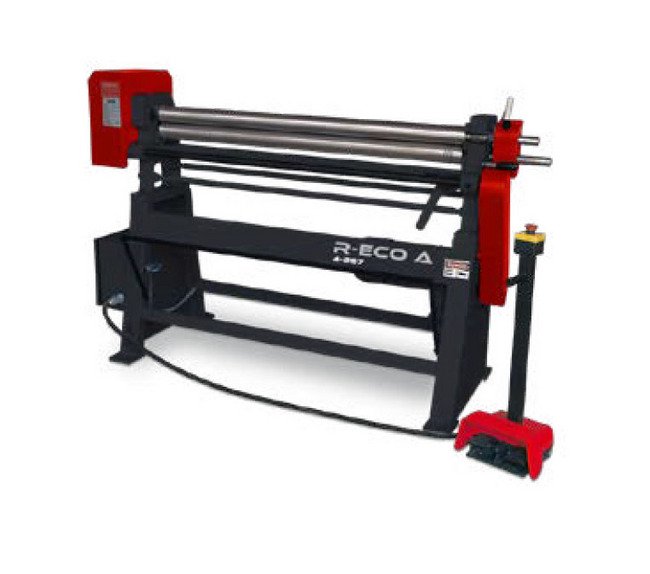

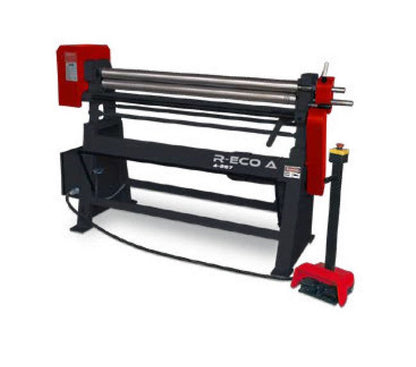

The R-ECO A 3-267 Motorized Initial Pinch Three Rolls Bending Machine from the R-ECO-A Series offers a cost-effective solution for small part bending needs. Constructed with robust cast iron frames, this machine features a chain and gearbox drive system, an electric motor with a magnetic brake for precise control, and foot pedals with forward, reverse, and emergency stop functions. Designed with safety in mind, it includes a safety wire and limit switch. With reliable performance and efficiency, it is an ideal choice for bending small parts.
Product Specifications
Note
The mentioned values above is only works for 38 KSI yield point material.Different material types and plate widths; can be calculated with RMT Roll Bending Calculator.Conical bending capacities depends on cone angle and half value of mentioned values above.Weight and motor powers may increase with optional features.Due to ongoing product development, specifications may change at any time.
Optional Features
Digital Read-Out for rear (back) rollInduction hardened and polished rolls

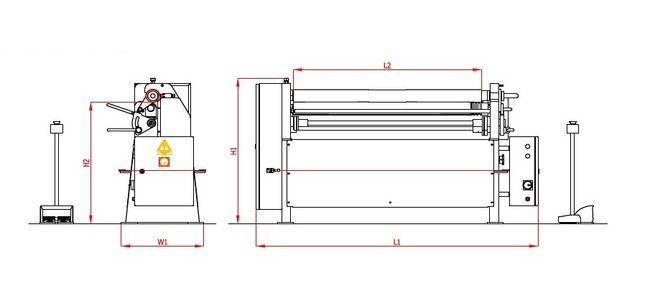

Specifications Bending Capacity T
16 gauge
Specifications Bending Length L2
3 ft 4 in.
Specifications Frame Material
Cast Iron
Specifications Height H1
27 in
Specifications Length L1
66 in
Specifications Main Motor Power
1 hp
Specifications Number Of Rolls
3
Specifications Optional Back Roll Motor Power
0.5 hp
Specifications Top Roll Diameter D
2.67 in
Specifications Weight
838 lb
Specifications Width W
22 in
Specifications Working Height H1
35 in
Standard Features
Top and bottom rolls are powered by a helical type gearbox and AC motorAISI 1050 Quality Certificated steel rolls with high tensile strengthSolid steel frame.Mechanical manual mechanical drop-end.Foot pedal.Conical bending deviceManual lubrication pointsPrecision bending with brake motorWire grooves at the end of the rolls (0.157"/0.275"/0.354")
