R-ECO A 3-295 Plate Rolls Bending Machine
R-ECO A 3-295 Plate Rolls Bending Machine
SKU:PLA-3e2348
Economical, reliable, and efficient plate rolls bending machine for small part fabrication needs. Features a cast iron frame, magnetic brake, and user-friendly controls.
Regular price
$7,999.00
Regular price
Sale price
$7,999.00
Unit price
per
Initiate Order
R-ECO A 3-295 Plate Rolls Bending Machine
$7,999.00
Quantity: 1
Claim Your Seller Account
R-ECO A 3-295 Plate Rolls Bending Machine
$7,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

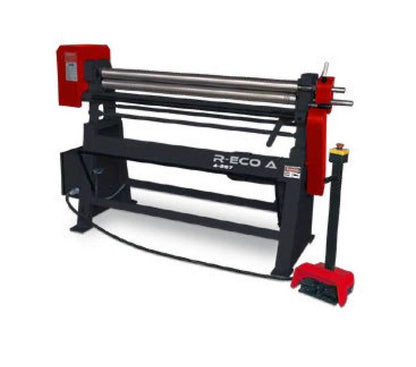

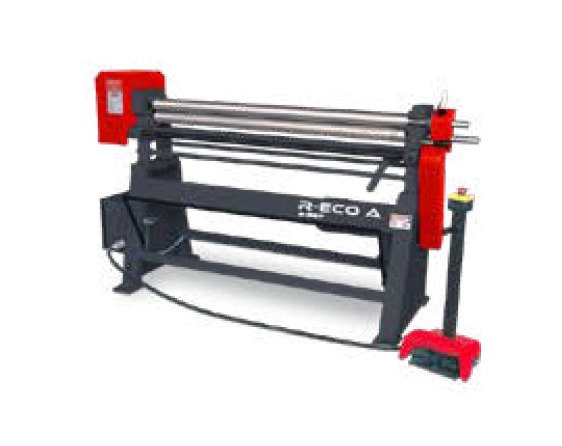

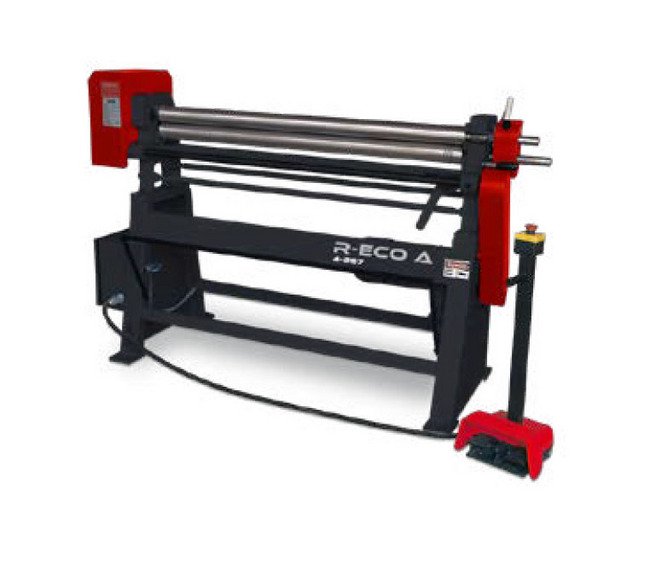

The R-ECO A 3-295 Plate Rolls Bending Machine from R-ECO-A Series is a reliable solution tailored for small part bending operations with minimal operating costs. Crafted with a robust cast iron frame, this machine ensures durability and precision bending. Equipped with a chain and gearbox drive systems, electric motors featuring a magnetic brake for enhanced safety, and foot pedals with forward, reverse, and emergency stop functions, it offers an economical and efficient option for small parts fabrication. Ideal for a variety of materials, this machine combines quality construction with user-friendly features to meet the demands of modern fabrication environments.
Product Specifications
Note
The mentioned values above is only works for 38 KSI yield point material.Different material types and plate widths; can be calculated with RMT Roll Bending Calculator.Conical bending capacities depends on cone angle and half value of mentioned values above.Weight and motor powers may increase with optional features.Due to ongoing product development, specifications may change at any time.
Optional Features
Digital Read-Out for rear (back) rollInduction hardened and polished rolls

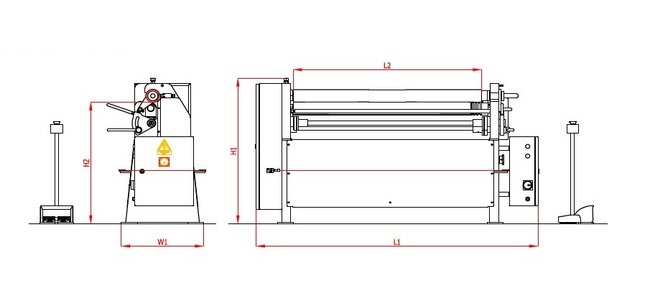

Specifications Bending Capacity T
14 gauge
Specifications Bending Length L2
3 ft 4 in.
Specifications Frame Material
Cast Iron
Specifications Height H1
27 in
Specifications Length L1
66 in
Specifications Main Motor Power
1 hp
Specifications Number Of Rolls
3
Specifications Optional Back Roll Motor Power
0.5 hp
Specifications Top Roll Diameter D
2.95 in
Specifications Weight
849 lb
Specifications Width W
22 in
Specifications Working Height H1
35 in
Standard Features
Top and bottom rolls are powered by a helical type gearbox and AC motorAISI 1050 Quality Certificated steel rolls with high tensile strengthSolid steel frame.Mechanical manual mechanical drop-end.Foot pedal.Conical bending deviceManual lubrication pointsPrecision bending with brake motorWire grooves at the end of the rolls (0.157"/0.275"/0.354")
