R-ECO A 4-267 Motorized Three Rolls Bending Machine
R-ECO A 4-267 Motorized Three Rolls Bending Machine
SKU:PLA-d4a45f
Efficient and reliable motorized bending machine for small parts with safety features, precision control, and optional digital read-out.
Regular price
$8,499.99
Regular price
Sale price
$8,499.99
Unit price
per
Initiate Order
R-ECO A 4-267 Motorized Three Rolls Bending Machine
$8,499.99
Quantity: 1
Claim Your Seller Account
R-ECO A 4-267 Motorized Three Rolls Bending Machine
$8,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

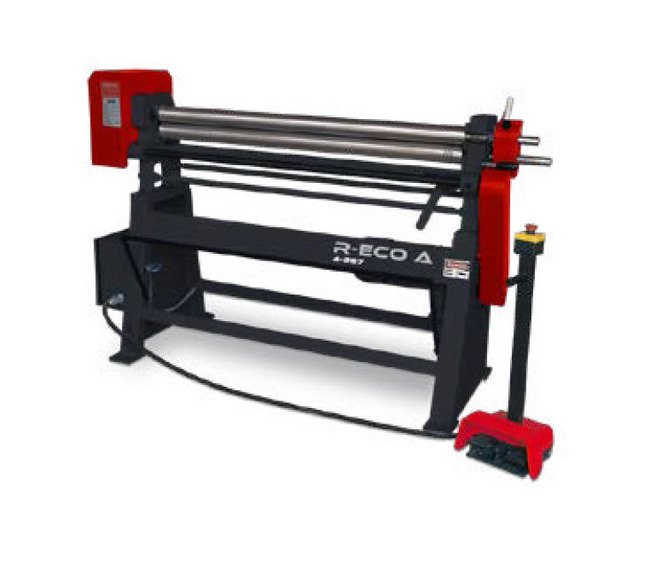

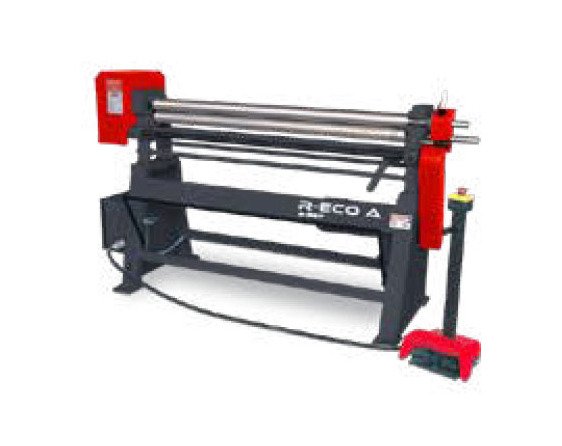

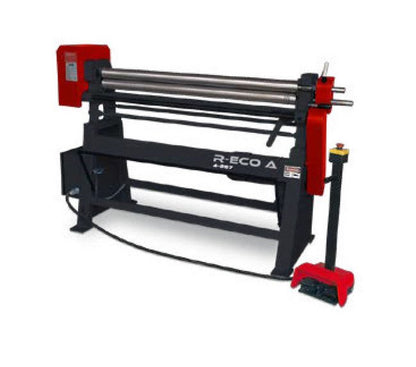

The R-ECO A 4-267 Motorized Initial Pinch Three Rolls Bending Machine is a premium solution for small part bending, featuring a robust cast iron frame, chain and gearbox drive systems, and electric motors with a magnetic brake for precision control. This machine ensures efficiency with foot pedals for easy operation, safety features like a safety wire and limit switch, and options for digital rear roll read-out and hardened rolls. Designed for reliability and cost-effectiveness, it is a top choice for small parts bending needs.
Product Specifications
Note
The mentioned values above is only works for 38 KSI yield point material.Different material types and plate widths; can be calculated with RMT Roll Bending Calculator.Conical bending capacities depends on cone angle and half value of mentioned values above.Weight and motor powers may increase with optional features.Due to ongoing product development, specifications may change at any time.
Optional Features
Digital Read-Out for rear (back) rollInduction hardened and polished rolls

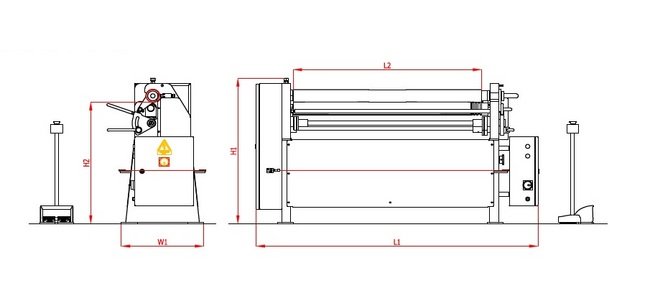

Specifications Bending Capacity T
18 gauge
Specifications Bending Length L2
4 ft 2 in.
Specifications Frame Material
Cast Iron
Specifications Height H1
27 in
Specifications Length L1
75 in
Specifications Main Motor Power
1 hp
Specifications Number Of Rolls
3
Specifications Optional Back Roll Motor Power
0.5 hp
Specifications Top Roll Diameter D
2.67 in
Specifications Weight
981 lb
Specifications Width W
22 in
Specifications Working Height H1
35 in
Standard Features
Top and bottom rolls are powered by a helical type gearbox and AC motorAISI 1050 Quality Certificated steel rolls with high tensile strengthSolid steel frame.Mechanical manual mechanical drop-end.Foot pedal.Conical bending deviceManual lubrication pointsPrecision bending with brake motorWire grooves at the end of the rolls (0.157"/0.275"/0.354")
