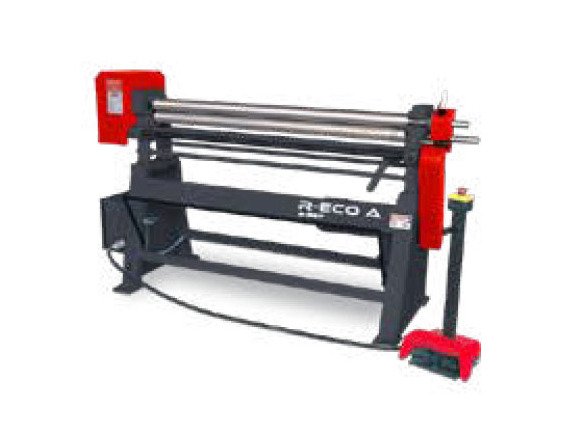

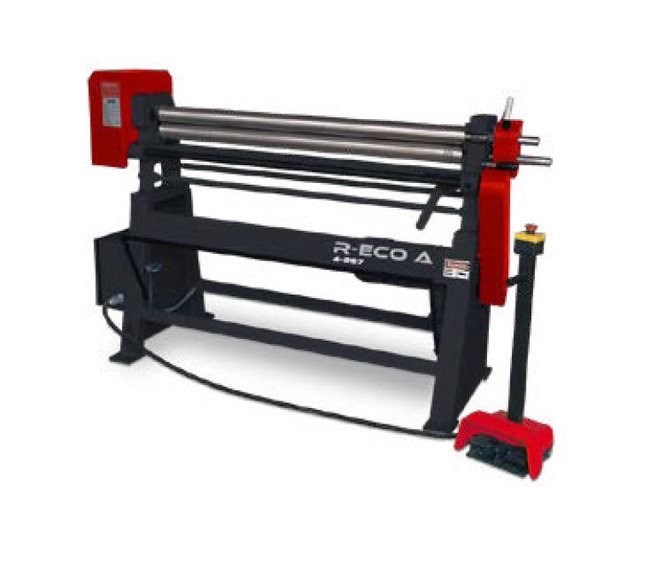

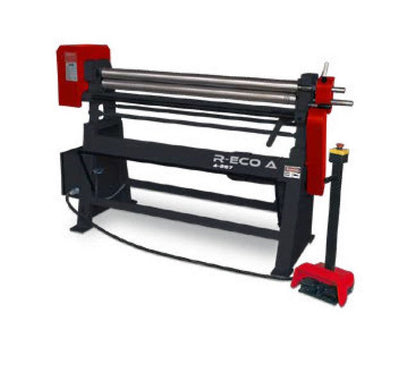

R-ECO A 5-295 Motorized Three Rolls Bending Machine
R-ECO A 5-295 Motorized Three Rolls Bending Machine
SKU:PLA-ded420
Achieve precise small part bending economically with the R-ECO A 5-295 Bending Machine. Robust design for safety and efficiency.
Regular price
$7,499.99
Regular price
Sale price
$7,499.99
Unit price
per
Initiate Order
R-ECO A 5-295 Motorized Three Rolls Bending Machine
$7,499.99
Quantity: 1
Claim Your Seller Account
R-ECO A 5-295 Motorized Three Rolls Bending Machine
$7,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The R-ECO A 5-295 Motorized Three Rolls Bending Machine offers precision bending for small parts with low operational costs. Featuring a robust cast iron frame, helical gearbox drive system, and AISI 1050 quality steel rolls, it ensures efficient performance. Equipped with safety features like foot pedals, emergency stop, and wire grooves, it prioritizes user safety. This machine is a reliable and economical choice tailored to meet the small parts bending needs of various industries.
Product Specifications
Note
The mentioned values above is only works for 38 KSI yield point material.Different material types and plate widths; can be calculated with RMT Roll Bending Calculator.Conical bending capacities depends on cone angle and half value of mentioned values above.Weight and motor powers may increase with optional features.Due to ongoing product development, specifications may change at any time.
Optional Features
Digital Read-Out for rear (back) rollInduction hardened and polished rolls

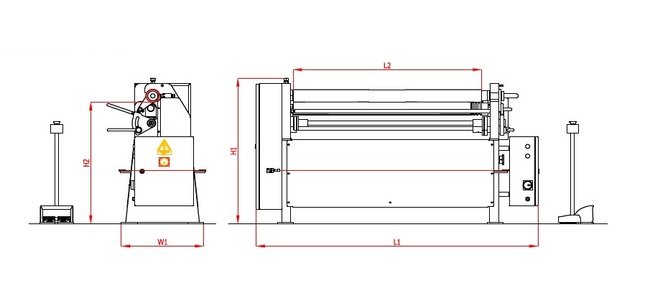

Specifications Bending Capacity T
20 gauge
Specifications Bending Length L2
5 ft
Specifications Frame Material
Cast Iron
Specifications Height H1
27 in
Specifications Length L1
86 in
Specifications Main Motor Power
1 hp
Specifications Number Of Rolls
3
Specifications Optional Back Roll Motor Power
0.5 hp
Specifications Top Roll Diameter D
2.95 in
Specifications Weight
1168 lb
Specifications Width W
22 in
Specifications Working Height H1
35 in
Standard Features
Top and bottom rolls are powered by a helical type gearbox and AC motorAISI 1050 Quality Certificated steel rolls with high tensile strengthSolid steel frame.Mechanical manual mechanical drop-end.Foot pedal.Conical bending deviceManual lubrication pointsPrecision bending with brake motorWire grooves at the end of the rolls (0.157"/0.275"/0.354")
