R-ECO A 6-295 Motorized Three Rolls Bending Machine
R-ECO A 6-295 Motorized Three Rolls Bending Machine
SKU:PLA-611ae2
Efficient R-ECO A 6-295 Motorized Bending Machine for precise small part bending operations.
Regular price
$7,499.99
Regular price
Sale price
$7,499.99
Unit price
per
Initiate Order
R-ECO A 6-295 Motorized Three Rolls Bending Machine
$7,499.99
Quantity: 1
Claim Your Seller Account
R-ECO A 6-295 Motorized Three Rolls Bending Machine
$7,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

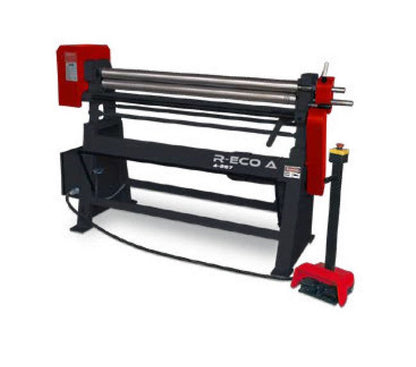

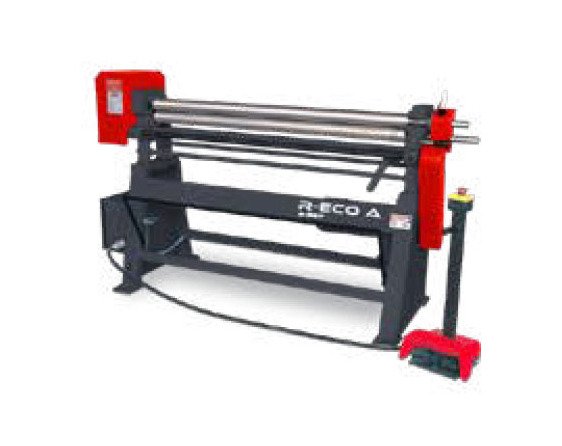

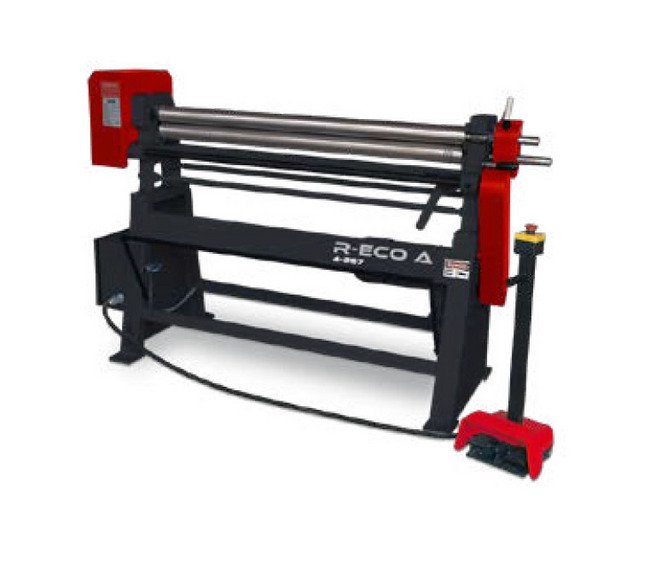

The R-ECO A 6-295 Motorized Three Rolls Bending Machine is a reliable solution designed for small part bending with cost-efficiency in mind. Featuring a robust cast iron frame, chain and gearbox drive systems, and electric motors with magnetic brakes to prevent drifting, this machine ensures precise bending operations. With foot pedals for convenient control, safety features like emergency stops and limit switches, the R-ECO A 6-295 is an economical and efficient choice for fulfilling your small parts bending needs.
Product Specifications
Note
The mentioned values above is only works for 38 KSI yield point material.Different material types and plate widths; can be calculated with RMT Roll Bending Calculator.Conical bending capacities depends on cone angle and half value of mentioned values above.Weight and motor powers may increase with optional features.Due to ongoing product development, specifications may change at any time.
Optional Features
Digital Read-Out for rear (back) rollInduction hardened and polished rolls

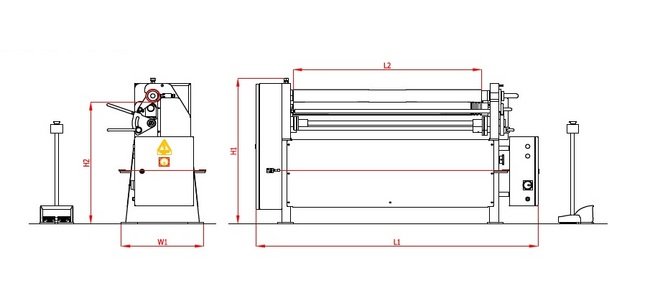

Specifications Bending Capacity T
25 gauge
Specifications Bending Length L2
6 ft 7 in.
Specifications Frame Material
Cast Iron
Specifications Height H1
27 in
Specifications Length L1
105 in
Specifications Main Motor Power
1 hp
Specifications Number Of Rolls
3
Specifications Optional Back Roll Motor Power
0.5 hp
Specifications Top Roll Diameter D
2.95 in
Specifications Weight
1290 lb
Specifications Width W
22 in
Specifications Working Height H1
35 in
Standard Features
Top and bottom rolls are powered by a helical type gearbox and AC motorAISI 1050 Quality Certificated steel rolls with high tensile strengthSolid steel frame.Mechanical manual mechanical drop-end.Foot pedal.Conical bending deviceManual lubrication pointsPrecision bending with brake motorWire grooves at the end of the rolls (0.157"/0.275"/0.354")
