R-ECO-B Series Motorized 3-Roll Bending Machine
R-ECO-B Series Motorized 3-Roll Bending Machine
SKU:PLA-ce1012
Efficient and reliable 3-Roll Bending Machine with 16-gauge capacity, ideal for small part bending applications.
Regular price
$8,499.99
Regular price
Sale price
$8,499.99
Unit price
per
Initiate Order
R-ECO-B Series Motorized 3-Roll Bending Machine
$8,499.99
Quantity: 1
Claim Your Seller Account
R-ECO-B Series Motorized 3-Roll Bending Machine
$8,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

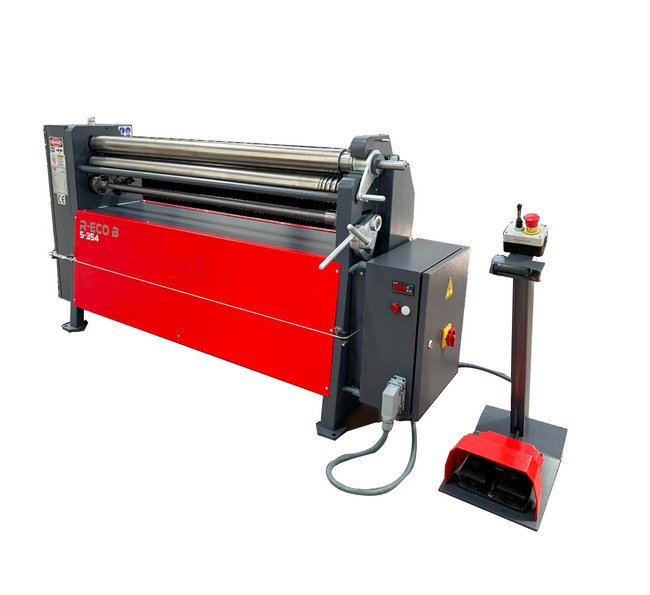

The R-ECO-B Series Motorized Initial Pinch Three Rolls Bending Machine is a robust solution for small part bending needs, featuring a 16-gauge bending capacity and a 3.54-inch top roll diameter. Designed for efficiency and reliability, this machine boasts a solid cast iron frame, chain and gearbox drive systems, and an electric motor with a magnetic brake for precision control. Equipped with essential safety features such as foot pedals, safety wire, and limit switches, it ensures a secure operation. An economical choice for small parts fabrication with precise bending capabilities.
Product Specifications
Note
The mentioned values above is only works for 38 KSI yield point material.Different material types and plate widths; can be calculated with RMT Roll Bending Calculator.Conical bending capacities depends on cone angle and half value of mentioned values above.Weight and motor powers may increase with optional features.Due to ongoing product development, specifications may change at any time.
Optional Features
Digital Read-Out for rear (back) rollInduction hardened and polished rollsMotorized adjustment of back roll

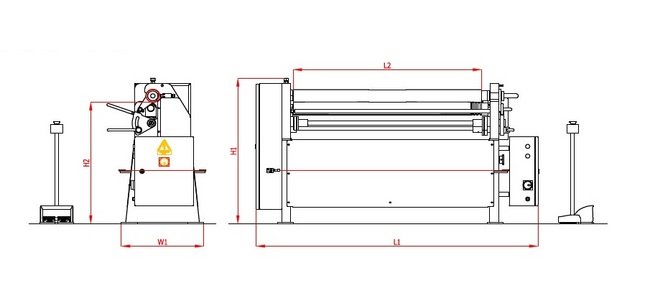

Specifications Bending Capacity T
16 gauge
Specifications Bending Length L2
5 ft
Specifications Height H1
27 in
Specifications Length L1
86 in
Specifications Main Motor Power
2 hp
Specifications Number Of Rolls
3
Specifications Optional Back Roll Motor Power
0.75 hp
Specifications Top Roll Diameter D
3.54 in
Specifications Weight
1323 lb
Specifications Width W
22 in
Specifications Working Height H1
35 in
Standard Features
Top and bottom rolls are powered by a helical type gearbox and AC motorAISI 1050 Quality Certificated steel rolls with high tensile strengthSolid steel frame.Mechanical manual mechanical drop-end.Foot pedal.Conical bending deviceManual lubrication pointsPrecision bending with brake motorWire grooves at the end of the rolls (0.157"/0.275"/0.354")
