R-ECO-B Series Motorized Initial Pinch 3-Roll Bending Machine
R-ECO-B Series Motorized Initial Pinch 3-Roll Bending Machine
SKU:PLA-c3cd54
Efficient and reliable 3-roll bending machine for precise small part bending.
Regular price
$6,899.99
Regular price
Sale price
$6,899.99
Unit price
per
Initiate Order
R-ECO-B Series Motorized Initial Pinch 3-Roll Bending Machine
$6,899.99
Quantity: 1
Claim Your Seller Account
R-ECO-B Series Motorized Initial Pinch 3-Roll Bending Machine
$6,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The R-ECO-B Series Motorized Initial Pinch 3-Roll Bending Machine is a top-of-the-line solution for precise and efficient small part bending. Built for durability, it features robust cast iron frames, chain and gearbox drive systems, and electric motors with a magnetic brake to prevent drifting. With foot pedals for easy operation and safety features like a safety wire and limit switch, this machine ensures reliable performance. Ideal for small parts production, it offers cost-effective and consistent bending capabilities, making it the smart choice for your manufacturing needs.
Product Specifications
Note
The mentioned values above is only works for 38 KSI yield point material.Different material types and plate widths; can be calculated with RMT Roll Bending Calculator.Conical bending capacities depends on cone angle and half value of mentioned values above.Weight and motor powers may increase with optional features.Due to ongoing product development, specifications may change at any time.
Optional Features
Digital Read-Out for rear (back) rollInduction hardened and polished rollsMotorized adjustment of back roll

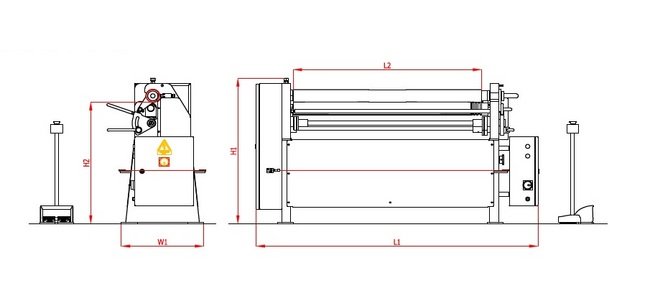

Specifications Bending Capacity T
12 gauge
Specifications Bending Length L2
3 ft 4 in.
Specifications Height H1
27 in
Specifications Length L1
66 in
Specifications Main Motor Power
2 hp
Specifications Number Of Rolls
3
Specifications Optional Back Roll Motor Power
0.75 hp
Specifications Top Roll Diameter D
3.54 in
Specifications Weight
992 lb
Specifications Width W
22 in
Specifications Working Height H1
35 in
Standard Features
Top and bottom rolls are powered by a helical type gearbox and AC motorAISI 1050 Quality Certificated steel rolls with high tensile strengthSolid steel frame.Mechanical manual mechanical drop-end.Foot pedal.Conical bending deviceManual lubrication pointsPrecision bending with brake motorWire grooves at the end of the rolls (0.157"/0.275"/0.354")
