R-ECO-B Series Motorized Three Rolls Bending Machine - 10 Gauge Capacity
R-ECO-B Series Motorized Three Rolls Bending Machine - 10 Gauge Capacity
SKU:PLA-5016c8
Efficient and reliable R-ECO-B Series Motorized Three Rolls Bending Machine for precise plate bending operations.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
R-ECO-B Series Motorized Three Rolls Bending Machine - 10 Gauge Capacity
$8,999.99
Quantity: 1
Claim Your Seller Account
R-ECO-B Series Motorized Three Rolls Bending Machine - 10 Gauge Capacity
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The R-ECO-B Series Motorized Three Rolls Bending Machine is an ideal solution for small part bending, offering cost-efficiency and reliability. Featuring a robust cast iron frame, chain and gearbox drive systems, and electric motors with a magnetic brake, this machine ensures precise and secure bending operations. With standard features like foot pedals for control, safety wire, and limit switch, it provides a safe working environment. Optional features include motorized adjustment of the back roll and induction hardened rolls. Engineered for efficiency and precision, this bending machine is a versatile choice for various plate rolling applications.
Product Specifications
Note
The mentioned values above is only works for 38 KSI yield point material.Different material types and plate widths; can be calculated with RMT Roll Bending Calculator.Conical bending capacities depends on cone angle and half value of mentioned values above.Weight and motor powers may increase with optional features.Due to ongoing product development, specifications may change at any time.
Optional Features
Digital Read-Out for rear (back) rollInduction hardened and polished rollsMotorized adjustment of back roll

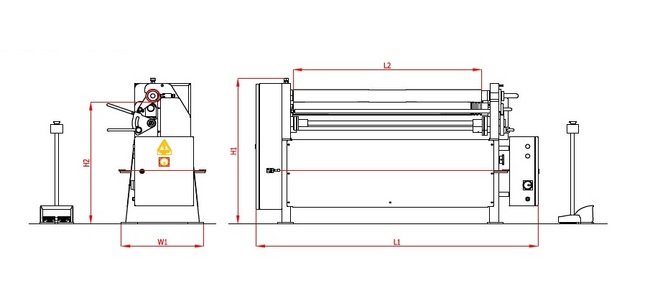

Specifications Bending Capacity T
10 gauge
Specifications Bending Length L2
3 ft 4 in.
Specifications Height H1
27 in
Specifications Length L1
66 in
Specifications Main Motor Power
2 hp
Specifications Number Of Rolls
3
Specifications Optional Back Roll Motor Power
0.75 hp
Specifications Top Roll Diameter D
3.93 in
Specifications Weight
1069 lb
Specifications Width W
22 in
Specifications Working Height H1
35 in
Standard Features
Top and bottom rolls are powered by a helical type gearbox and AC motorAISI 1050 Quality Certificated steel rolls with high tensile strengthSolid steel frame.Mechanical manual mechanical drop-end.Foot pedal.Conical bending deviceManual lubrication pointsPrecision bending with brake motorWire grooves at the end of the rolls (0.157"/0.275"/0.354")
