R.F. Attenuation Quiet Line Type 4 HV Cable
R.F. Attenuation Quiet Line Type 4 HV Cable
SKU:HIG-130723
Premium R.F. Attenuation HV Wire, featuring 11 dB/ft @480 MHz & silicone coating for durability. Ideal for high voltage assemblies.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
R.F. Attenuation Quiet Line Type 4 HV Cable
$49.99
Quantity: 1
Claim Your Seller Account
R.F. Attenuation Quiet Line Type 4 HV Cable
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

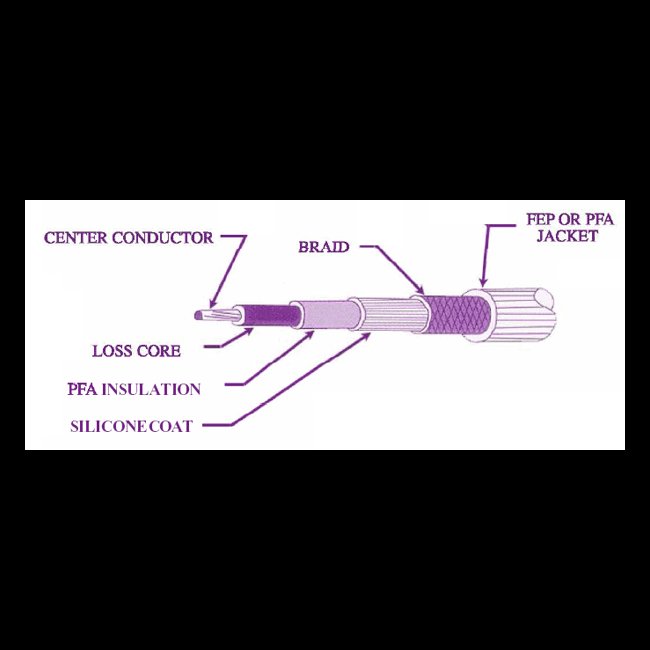

The Quiet Line Type 4 High Voltage Wire and Cable is a top-tier solution for RF power attenuation in high voltage applications. Crafted with precision, it offers exceptional distributed loss capabilities with 11 dB/ft attenuation at 480 MHz and 90 dB/ft at 2.4 GHz. This cable features a 22 AWG conductor gauge, PFA insulator, and FEP/PFA jacket with a silver-plated copper braid. With rigorous voltage stress testing at 140% of rated voltage and 100% insertion loss verification, it ensures reliable performance even in challenging environments. The silicone coating enhances dielectric bonding for superior durability and is available in shielded and non-shielded variants for diverse applications. Ideal for upgrading existing lead assemblies or creating new ones, the Quiet Line Type 4 operates flawlessly in temperatures ranging from -55 to 125°C.
Product Specifications
Alternate Cable Part Number Equivalents Silicone Coated Part Num
178-8024
Cable Wire Properties Etched
No
Cable Wire Properties Jacketed
Yes
Cable Wire Properties Silicone Coated
Yes
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Specifications Attenuation 24 Ghz
90 dB/ft
Specifications Attenuation 480 Mhz
11 dB/ft
Specifications Braid Material
Silver Plated Copper
Specifications Conductor Gauge
22 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Silver Plated
Specifications Conductor Strands
19/34
Specifications Construction Style
4
Specifications Default Color
Natural
Specifications Diameter
0.145 in | 3.6 mm
Specifications Insertion Loss Testing
100% insertion loss verification performed on each extrusion lot. The swept frequency insertion loss technique is used within the specified frequency range per MIL-C-17F. Test specimens are shielded with a BNC termination.
Specifications Insulator Material
PFA
Specifications Jacket Material
FEP | PFA
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.145 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
12 kVDC
Specifications Voltage Stress Testing
100% test at 140% of rated voltage (room ambient)
