R-G Ball Joint Left Hand Rod End

R-G Ball Joint Left Hand Rod End

PUS-1f2e30

Durable R-G Ball Joint Left Hand Rod End for medium to heavy-duty applications. Zinc-plated low carbon steel, temperature-resistant, meets SAE J490 standards.

$24.99
$24.99
Sale

Initiate Order

R-G Ball Joint Left Hand Rod End

R-G Ball Joint Left Hand Rod End

$24.99

Quantity: 1

Claim Your Seller Account

R-G Ball Joint Left Hand Rod End

R-G Ball Joint Left Hand Rod End

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

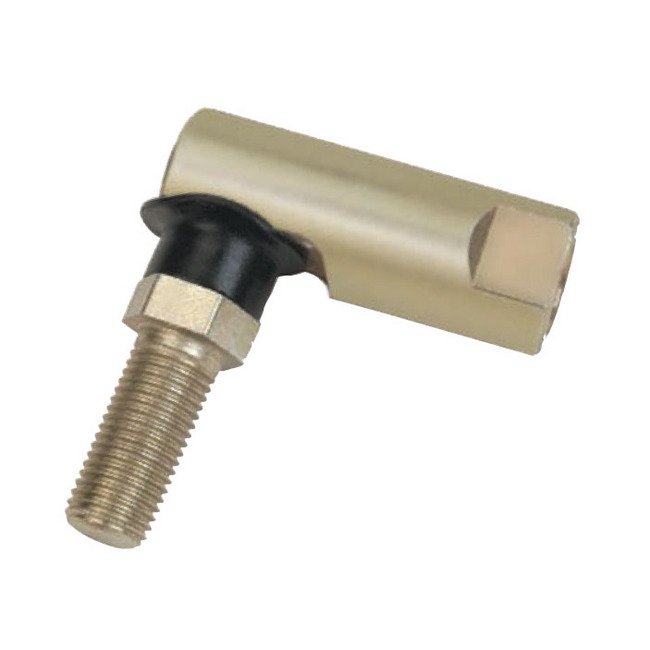

The R-G Ball Joint Left Hand Rod End is designed for various integral ball joint applications, offering an economical solution for medium to heavy-duty usage. Made of low carbon steel with zinc plating and yellow dichromate treatment, this ball joint ensures extended wear life. The staked steel body and ball stud, along with the rubber grommet seal, provide durability in diverse environments and temperatures ranging from -30°F to 250°F (-34°C to 121°C). This product meets SAE specification J490 (Type G/Style 2) and can be custom-built to specific requirements, including different thread types and sizes.

Product Specifications

Applications 0
Various integral ball joint applications, including:Lawn and garden equipmentConstructionIndustrial equipment
Features 0
Steel body and ball stud "staked" design offers an economical solution to medium to heavy-duty ball joint applicationsBall stud is case hardened for extended wear lifeRubber grommet provides a durable seal against contaminantsCan be used in a wide range of temperatures: -30 ºF - 250 ºF (-34 ºC - 121 ºC)Custom sizes and assemblies can be built to your specifications, including: - male to male or female to female - right or left-handed threadsMany metric sizes available - consult factoryMeets SAE specification J490 (Type G/Style 2)
Material 0
Ball Stud - Low Carbon Steel, case Hardened for Extended Wear Life, Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel, Zinc Plated, Yellow Dichromate Treated

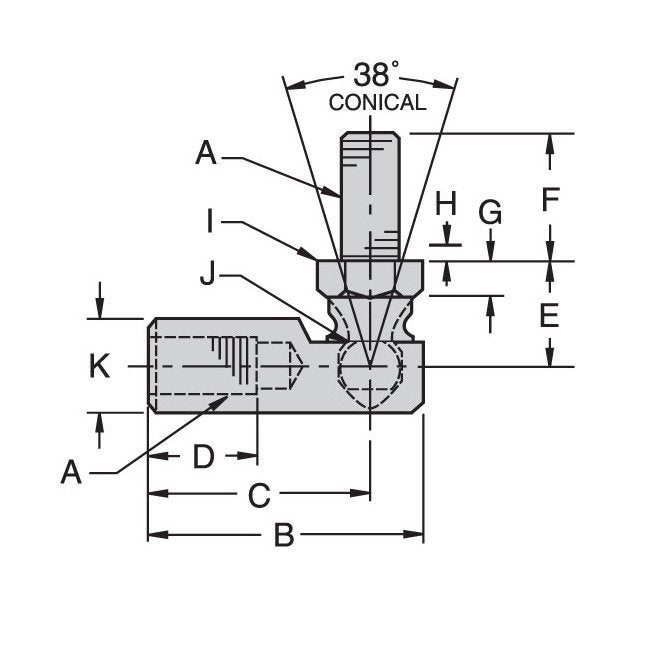

Specifications A Unf
7/16-20 "
Specifications B 0020
2.375 "
Specifications C 0020
1.937 "
Specifications D Min
1.125 "
Specifications E 0020
0.875 "
Specifications Force To Remove Ball Stud
2700 lb
Specifications F 0020
1.125 "
Specifications G Ref
0.250 "
Specifications H Ref
0.125 "
Specifications I Ref
0.625 "
Specifications J Ref
0.412 "
Specifications K Ref
0.750 "
Specifications Note
Ball Joint can be ordered without the grommet by dropping the "G" suffix. Example: R108LHR103G size is supplied with a wrap around grommet.
Specifications Temperature Range
-30 to 250 ºF | -34 to 121 ºC
Specifications Tensile Shear Strength
3390 lb
Specifications Wrench Flat Length
0.375 "
Specifications Wrench Flat Width
0.625 "
