R-G Ball Joints Left Hand Rod End

R-G Ball Joints Left Hand Rod End

PUS-d126b9

Reliable Left Hand Rod End for medium to heavy-duty applications, featuring steel body, staked design, and rubber grommet seal. SAE J490 compliant.

$25.99
$25.99
Sale

Initiate Order

R-G Ball Joints Left Hand Rod End

R-G Ball Joints Left Hand Rod End

$25.99

Quantity: 1

Claim Your Seller Account

R-G Ball Joints Left Hand Rod End

R-G Ball Joints Left Hand Rod End

$25.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

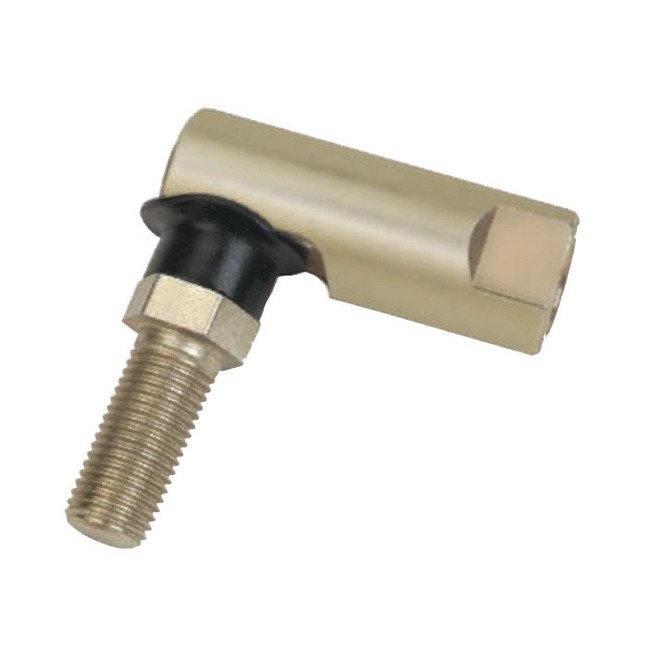

The R-G Ball Joints Left Hand Rod End offers a reliable solution for medium to heavy-duty ball joint applications. Crafted with a steel body and ball stud staked design, it ensures durability and extended wear life. With a rubber grommet for added protection against contaminants, this versatile rod end can withstand temperatures from -30 °F to 250 °F. Compliant with SAE specification J490 (Type G/Style 2), it is ideal for various integral joint applications in lawn and garden, construction, and industrial equipment sectors.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications 0
Various integral ball joint applications, including:Lawn and garden equipmentConstructionIndustrial equipment
Features 0
Steel body and ball stud "staked" design offers an economical solution to medium to heavy-duty ball joint applicationsBall stud is case hardened for extended wear lifeRubber grommet provides a durable seal against contaminantsCan be used in a wide range of temperatures: -30 ºF - 250 ºF (-34 ºC - 121 ºC)Custom sizes and assemblies can be built to your specifications, including: - male to male or female to female - right or left-handed threadsMany metric sizes available - consult factoryMeets SAE specification J490 (Type G/Style 2)
Material 0
Ball Stud - Low Carbon Steel, case Hardened for Extended Wear Life, Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel, Zinc Plated, Yellow Dichromate Treated

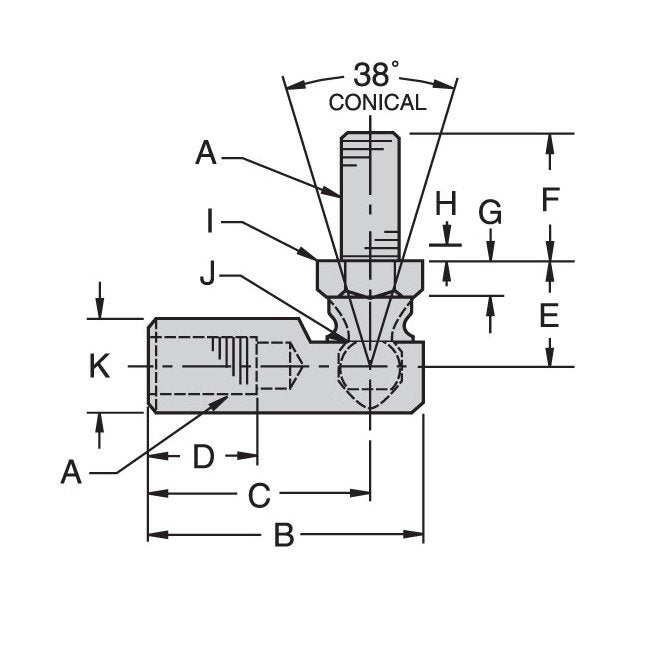

Specifications A Unf
10-32 "
Specifications B 0020
1.156 "
Specifications C 0020
0.875 "
Specifications D Min
0.469 "
Specifications E 0020
0.359 "
Specifications Force To Remove Ball Stud
690 lb
Specifications F 0020
0.438 "
Specifications G Ref
0.094 "
Specifications H Ref
0.062 "
Specifications I Ref
0.312 "
Specifications J Ref
0.177 "
Specifications K Ref
0.375 "
Specifications Note
Ball Joint can be ordered without the grommet by dropping the "G" suffix. Example: R108LHR103G size is supplied with a wrap around grommet.
Specifications Temperature Range
-30 to 250 ºF | -34 to 121 ºC
Specifications Tensile Shear Strength
295 lb
Specifications Wrench Flat Length
0.250 "
Specifications Wrench Flat Width
0.312 "
CAGE
0T9L4
NAICS
332510
PSC
4030
