R-G Ball Joints Left Hand Rod End
R-G Ball Joints Left Hand Rod End
SKU:PUS-0dec10
Durable left hand rod end for medium to heavy-duty applications, meets SAE J490 standards
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
R-G Ball Joints Left Hand Rod End
$24.99
Quantity: 1
Claim Your Seller Account
R-G Ball Joints Left Hand Rod End
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

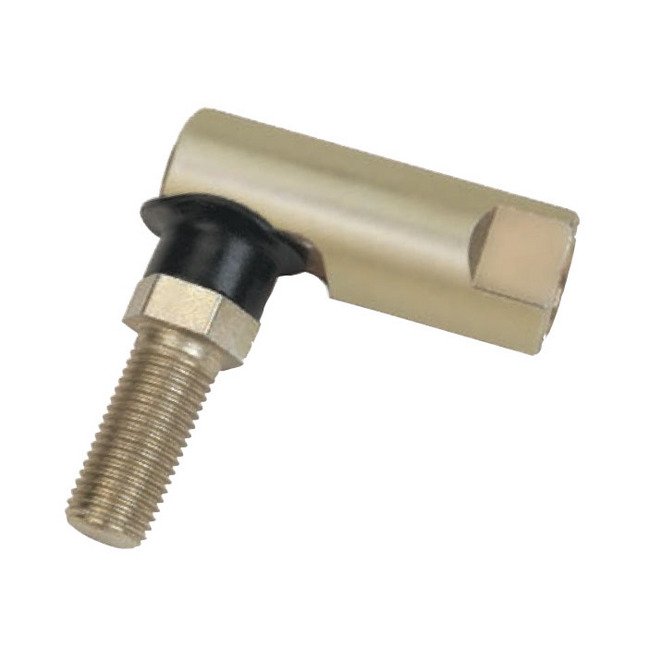

The R-G Ball Joints Left Hand Rod End is a durable solution designed for medium to heavy-duty applications. Featuring a staked steel body and ball stud, it offers extended wear life and reliable performance. The rubber grommet ensures a seal against contaminants, while its temperature range of -30 to 250°F allows versatile use. Customizable to meet your specifications, this ball joint meets SAE specification J490 (Type G/Style 2) for quality assurance.
Product Specifications
Applications 0
Various integral ball joint applications, including:Lawn and garden equipmentConstructionIndustrial equipment
Features 0
Steel body and ball stud "staked" design offers an economical solution to medium to heavy-duty ball joint applicationsBall stud is case hardened for extended wear lifeRubber grommet provides a durable seal against contaminantsCan be used in a wide range of temperatures: -30 ºF - 250 ºF (-34 ºC - 121 ºC)Custom sizes and assemblies can be built to your specifications, including: - male to male or female to female - right or left-handed threadsMany metric sizes available - consult factoryMeets SAE specification J490 (Type G/Style 2)
Material 0
Ball Stud - Low Carbon Steel, case Hardened for Extended Wear Life, Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel, Zinc Plated, Yellow Dichromate Treated

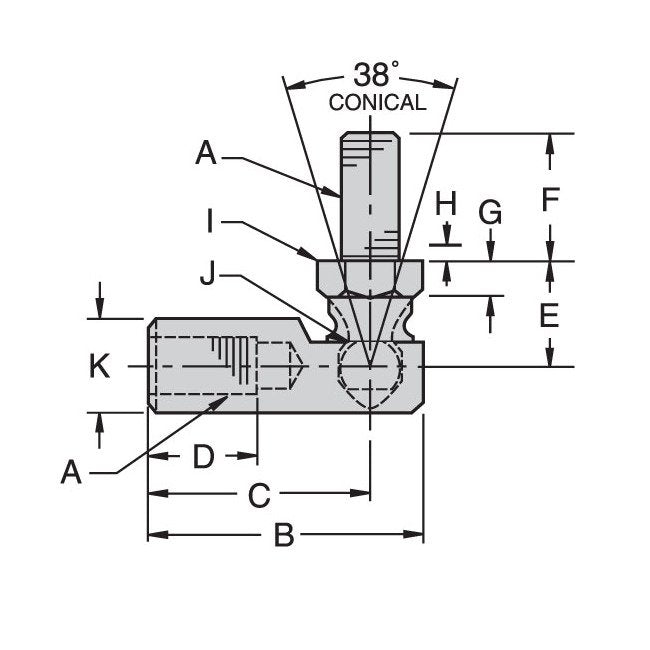

Specifications A Unf
3/8-24 "
Specifications B 0020
1.687 "
Specifications C 0020
1.375 "
Specifications D Min
0.750 "
Specifications E 0020
0.687 "
Specifications Force To Remove Ball Stud
1700 lb
Specifications F 0020
0.875 "
Specifications G Ref
0.187 "
Specifications H Ref
0.094 "
Specifications I Ref
0.500 "
Specifications J Ref
0.287 "
Specifications K Ref
0.625 "
Specifications Note
Ball Joint can be ordered without the grommet by dropping the "G" suffix. Example: R108LHR103G size is supplied with a wrap around grommet.
Specifications Temperature Range
-30 to 250 ºF | -34 to 121 ºC
Specifications Tensile Shear Strength
2437 lb
Specifications Wrench Flat Length
0.312 "
Specifications Wrench Flat Width
0.500 "
