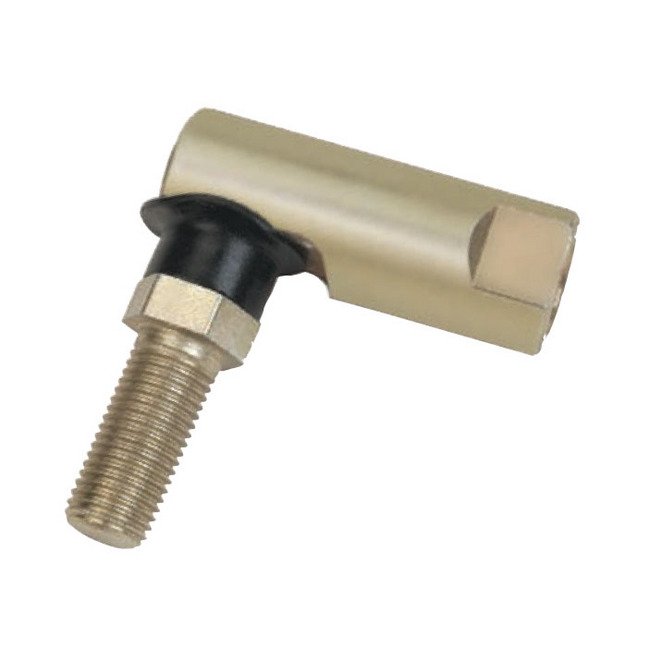

R-G Ball Joints Left Hand Rod End

R-G Ball Joints Left Hand Rod End

PUS-d27e25

Economical and durable Left Hand Rod End for medium to heavy-duty applications. Steel housing with rubber grommet seal.

$24.99
$24.99
Sale

Initiate Order

R-G Ball Joints Left Hand Rod End

R-G Ball Joints Left Hand Rod End

$24.99

Quantity: 1

Claim Your Seller Account

R-G Ball Joints Left Hand Rod End

R-G Ball Joints Left Hand Rod End

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The R-G Ball Joints Left Hand Rod End is designed for various integral ball joint applications in lawn and garden equipment, construction, and industrial settings. Featuring a steel body and ball stud staked design, this ball joint offers an economical yet durable solution for medium to heavy-duty applications. The case-hardened ball stud ensures extended wear life, while the rubber grommet provides a reliable seal against contaminants. With a temperature range of -30 ºF - 250 ºF (-34 ºC - 121 ºC) and compliance with SAE specification J490 (Type G/Style 2), this Left Hand Rod End is a versatile and reliable choice for institutional and government buyers.

Product Specifications

Applications 0
Various integral ball joint applications, including:Lawn and garden equipmentConstructionIndustrial equipment
Features 0
Steel body and ball stud "staked" design offers an economical solution to medium to heavy-duty ball joint applicationsBall stud is case hardened for extended wear lifeRubber grommet provides a durable seal against contaminantsCan be used in a wide range of temperatures: -30 ºF - 250 ºF (-34 ºC - 121 ºC)Custom sizes and assemblies can be built to your specifications, including: - male to male or female to female - right or left-handed threadsMany metric sizes available - consult factoryMeets SAE specification J490 (Type G/Style 2)
Material 0
Ball Stud - Low Carbon Steel, case Hardened for Extended Wear Life, Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel, Zinc Plated, Yellow Dichromate Treated

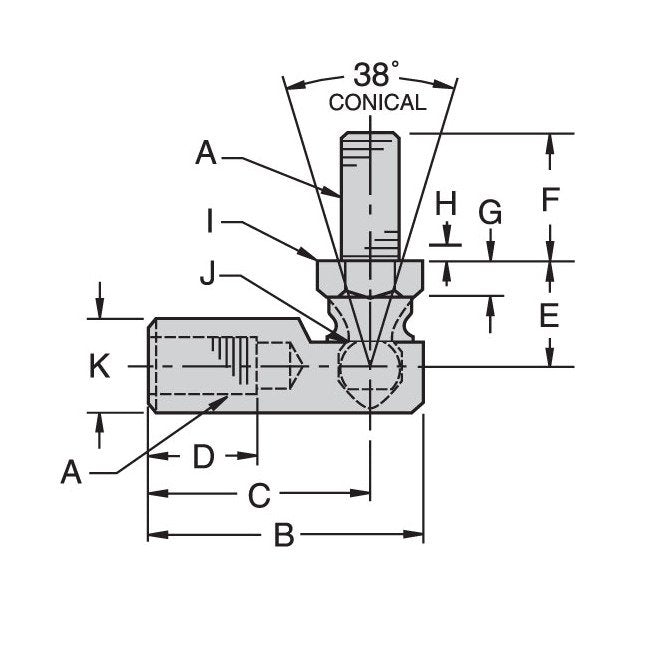

Specifications A Unf
1/4-28 "
Specifications B 0020
1.219 "
Specifications C 0020
0.969 "
Specifications D Min
0.500 "
Specifications E 0020
0.469 "
Specifications Force To Remove Ball Stud
1005 lb
Specifications F 0020
0.562 "
Specifications G Ref
0.125 "
Specifications H Ref
0.094 "
Specifications I Ref
0.375 "
Specifications J Ref
0.193 "
Specifications K Ref
0.437 "
Specifications Note
Ball Joint can be ordered without the grommet by dropping the "G" suffix. Example: R108LHR103G size is supplied with a wrap around grommet.
Specifications Temperature Range
-30 to 250 ºF | -34 to 121 ºC
Specifications Tensile Shear Strength
882 lb
Specifications Wrench Flat Length
0.281 "
Specifications Wrench Flat Width
0.375 "
