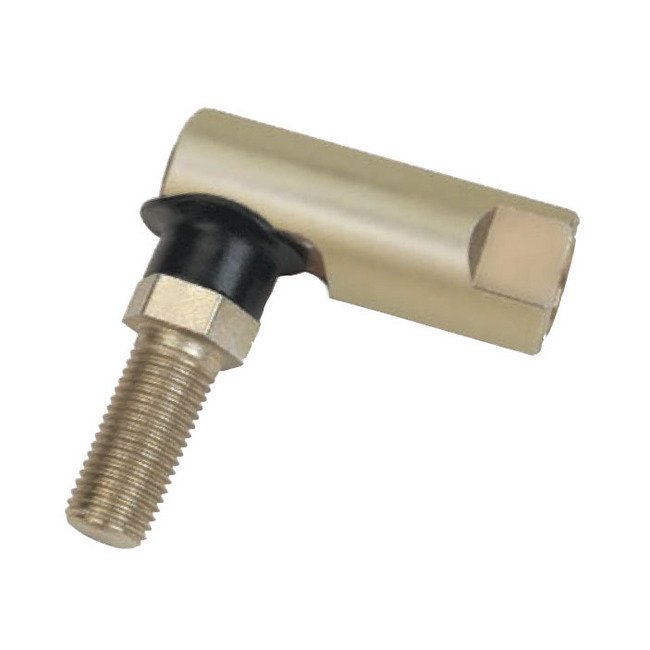

• R-G Ball Joints Right Hand Rod End - Image 1
  • R-G Ball Joints Right Hand Rod End - Image 2
1 2
Lexco Cable Manufacturing →

R-G Ball Joints Right Hand Rod End

R-G Ball Joints Right Hand Rod End

PUS-259905

Premium steel rod end with staked ball stud design, rubber grommet seal, and SAE J490 compliance.

$24.99
$24.99
Sale

Initiate Order

R-G Ball Joints Right Hand Rod End

R-G Ball Joints Right Hand Rod End

$24.99

Quantity: 1

Claim Your Seller Account

R-G Ball Joints Right Hand Rod End

R-G Ball Joints Right Hand Rod End

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The R-G Ball Joints Right Hand Rod End features a steel body and ball stud staked design, providing a cost-effective solution for medium to heavy-duty ball joint applications. The ball stud is case hardened for extended wear life, zinc plated, and yellow dichromate treated for durability. With a rubber grommet seal against contaminants, this rod end offers reliable performance in temperatures ranging from -30 ºF to 250 ºF (-34 ºC to 121 ºC). Customizable to meet specific requirements, it complies with SAE specification J490 (Type G/Style 2), ensuring quality and performance.

Product Specifications

Applications 0
Various integral ball joint applications, including:Lawn and garden equipmentConstructionIndustrial equipment
Features 0
Steel body and ball stud "staked" design offers an economical solution to medium to heavy-duty ball joint applicationsBall stud is case hardened for extended wear lifeRubber grommet provides a durable seal against contaminantsCan be used in a wide range of temperatures: -30 ºF - 250 ºF (-34 ºC - 121 ºC)Custom sizes and assemblies can be built to your specifications, including: - male to male or female to female - right or left-handed threadsMany metric sizes available - consult factoryMeets SAE specification J490 (Type G/Style 2)
Material 0
Ball Stud - Low Carbon Steel, case Hardened for Extended Wear Life, Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel, Zinc Plated, Yellow Dichromate Treated

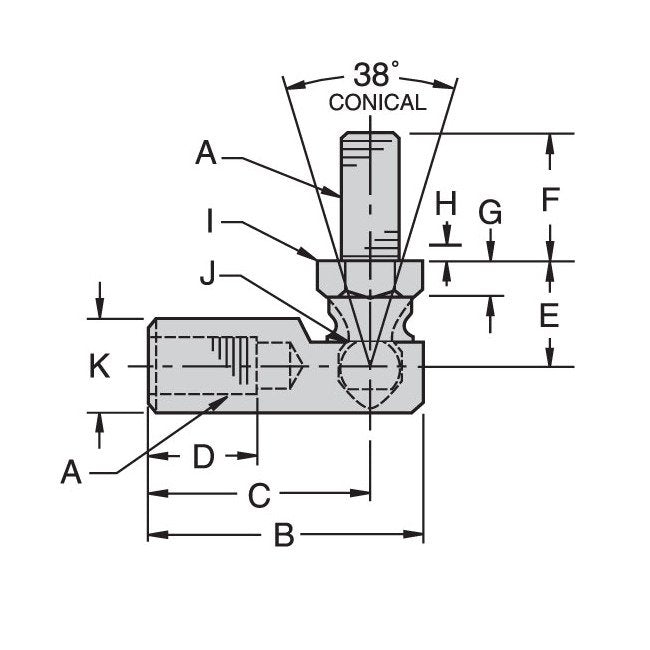

Specifications A Unf
1/2-20 "
Specifications B 0020
2.375 "
Specifications C 0020
1.937 "
Specifications D Min
1.125 "
Specifications E 0020
0.875 "
Specifications Force To Remove Ball Stud
2700 lb
Specifications F 0020
1.125 "
Specifications G Ref
0.250 "
Specifications H Ref
0.125 "
Specifications I Ref
0.625 "
Specifications J Ref
0.412 "
Specifications K Ref
0.750 "
Specifications Note
Ball Joint can be ordered without the grommet by dropping the "G" suffix. Example: R108LHR103G size is supplied with a wrap around grommet.
Specifications Temperature Range
-30 to 250 ºF | -34 to 121 ºC
Specifications Tensile Shear Strength
3390 lb
Specifications Wrench Flat Length
0.375 "
Specifications Wrench Flat Width
0.625 "
CAGE
0T9L4
NAICS
332510
PSC
4030
